[China] LTECH 24V NFC Programmable UL Certification Constant Voltage Triac Dimmable LED Driverx6Pcs

[China] LTECH 24V NFC Programmable UL Certification Constant Voltage Triac Dimmable LED Driverx6Pcs

LA-60-24-U1L

URL Datasheet 2

$ 531.00 SGD
$ 579.00 SGD $ 531.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
Power

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

***Ships from China - 2 to 3 weeks lead time***
Technical Details:

Product Features:

  • Metal casing for easy heat dissipation.
  • Supports 0-10V/1-10V/10V PWM/RX dimming, as well as leading-edge (Triac) and trailing-edge (ELV) dimming. It features strong compatibility and is compatible with various American-standard dimmers such as Lutron and Legrand.
  • Power parameters can be modified via mobile APP using NFC, enabling driver          data interaction function.
  • Dimming range: 0~100%, and the LED can start dimming from 0.01%.
  • Soft-on and fade-in dimming function enhances your visual comfort.
  • The dimming interface is equipped with photoelectric isolation, complies with the      latest safety standards, and is more safe and reliable.
  • When the signal is floating, it outputs at full load and can be used as a LED driver.
  • Innovative thermal management technology intelligently protects the service life      of the power supply.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • IP20, suitable for indoor LED lighting fixtures.
  • Complies with Type HL, and can be used in North American Class 1, Division 2 environments, such as gas stations, chemical plants, sewage treatment plants, etc.
  • Normal service life can reach 100,000 hours.
  • Certified to UL Class 2 and Class P.
  • Complies with IEEE 1789 and UL 8750 standards.
  • 5-year warranty(adopting Nippon Chemi-Con capacitors).

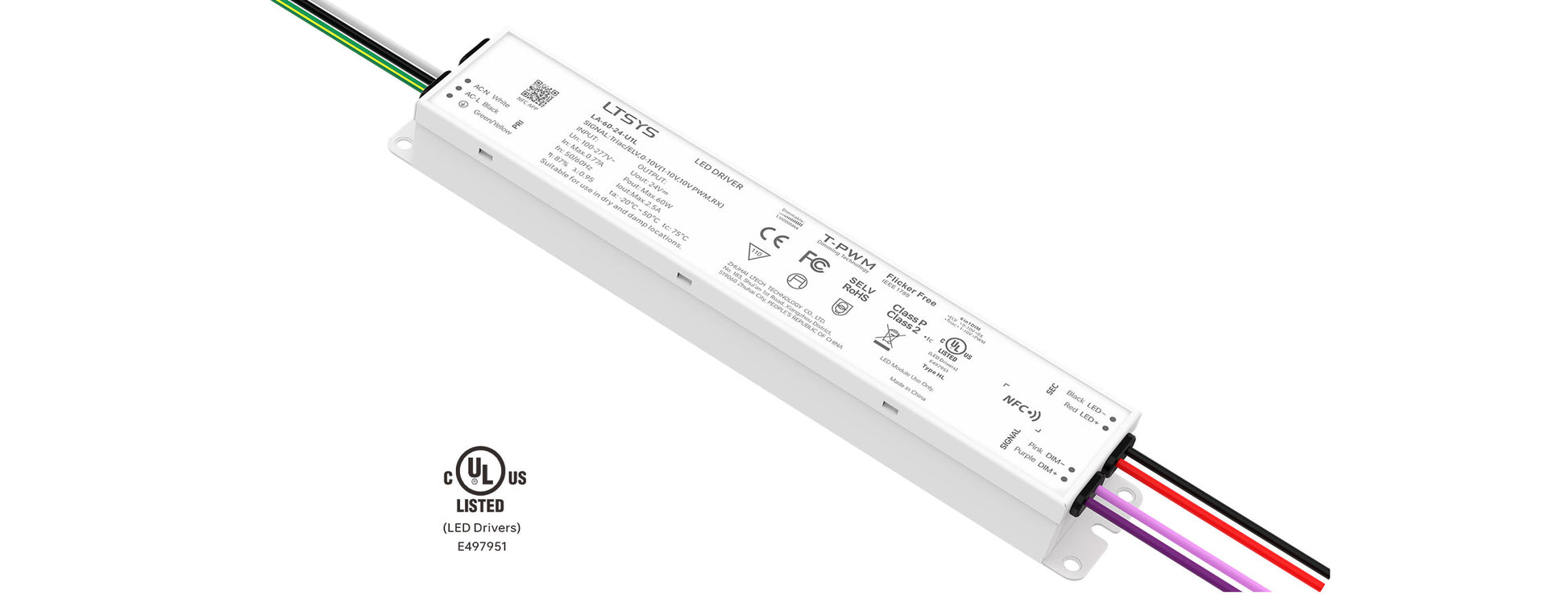

LA-60-24-U1L

Chemi-Con capacitors
Dimming Interface: Triac/ELV,0-10V(1-10V/10V PWM/RX)
Input Voltage: 100-277V~
Power Factor: PF>0.95/100V~, PF>0.9/230V~, PF>0.85/277V~(at full load)
Efficiency: 83%/100V~, 87%/230V~, 87%/277V~
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 2.5A
Output Power: Max. 60W
Dimming Range: 0~100%, dimming down to 0.01%
Certification: UL,CUL,CE,FCC,ROHS
Warranty: 5 years

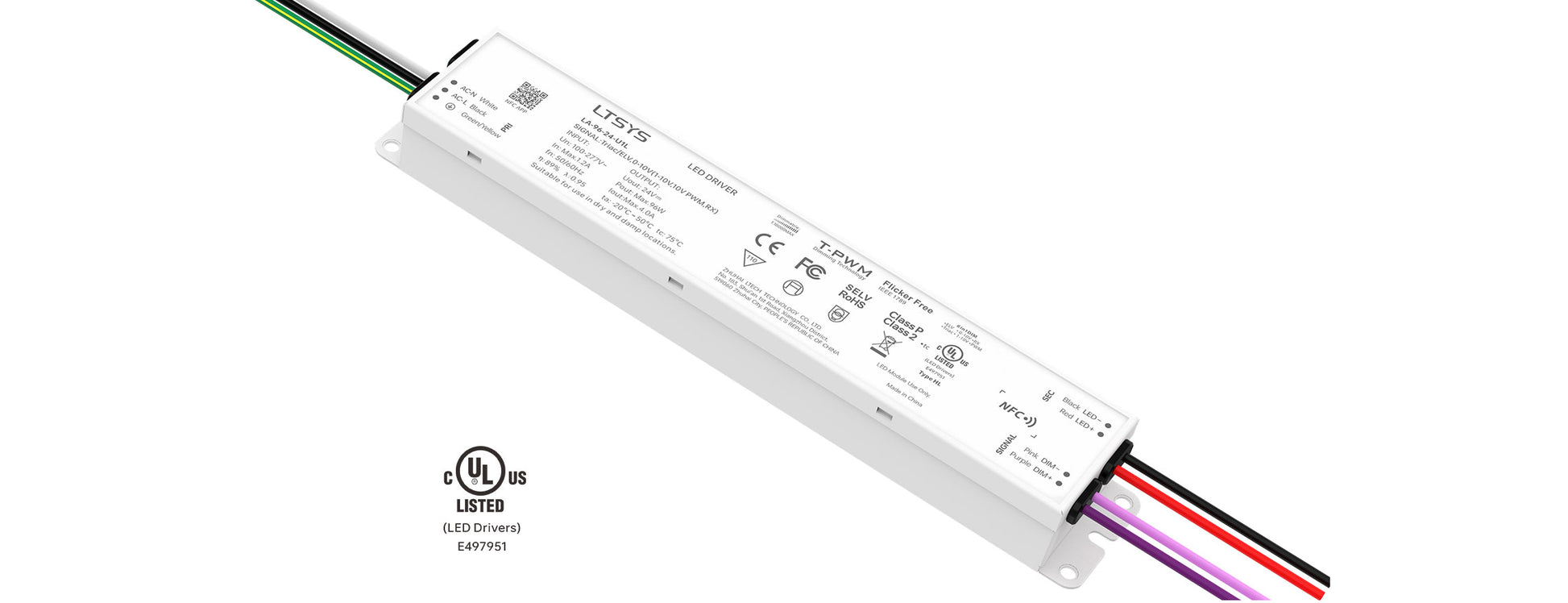

LA-96-24-U1L

Chemi-Con capacitors
Dimming Interface: Triac/ELV,0-10V(1-10V/10V PWM/RX)
Input Voltage: 100-277V~
Power Factor: PF>0.95/100V~, PF>0.95/230V~, PF>0.9/277V~(at full load)
Efficiency: 84%/100V~, 89%/230V~, 89%/277V~
Fluctuation Level: High frequency exemption level.
Output Voltage: 24Vdc
Output Current: Max. 4.0A
Output Power: 0~96W
Dimming Range: 0~100%, dimming down to 0.01%
Certification: UL,CUL,CE,FCC,ROHS
Warranty: 5 years
