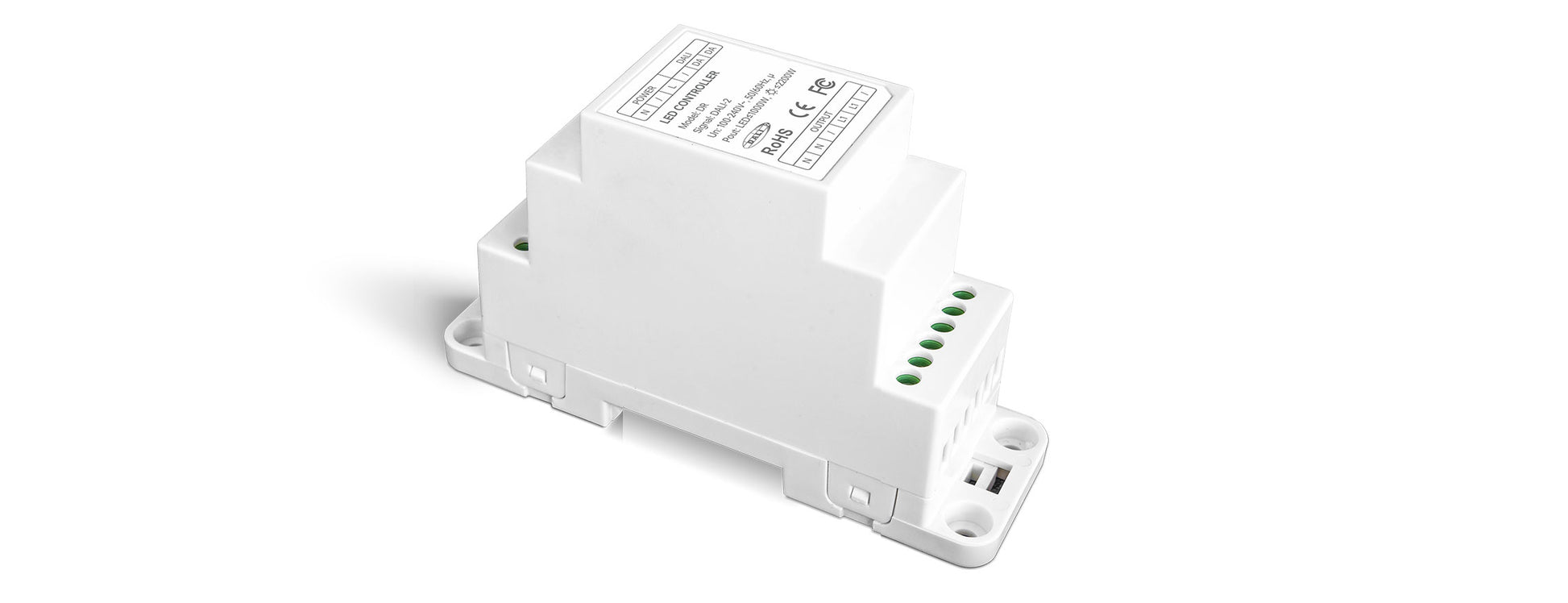

[China] LTECH DR DALI Relay Unit x 8Pcs

[China] LTECH DR DALI Relay Unit x 8Pcs

DR

URL Datasheet 2

$ 468.00 SGD
$ 511.00 SGD $ 468.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

** Ships From China, Lead Time 2-3 Weeks**

Product Features:

  • DALI-2 certified; compliant to IEC62386-101, IEC62386-102, IEC62386-208;
  • Relay unit is connected to the DALI bus and occupies 1 address ;
  • Together with a DALI master, it supports grouping, scene control;
  • Works as a relay to switch LED lights on/off;
  • Max. 3.6A per channel;
  • Wide supply voltage;
  • DIN rail mounting or screw mounting, suitable for project applications.

Technical Specification:

  • Input voltage: 100-240V~，50/60Hz，μ
  • Maximum current: 12A
  • Capacitive load: 2200W@230V~，1100W@110V~
  • Resistive load: 1000W@230V~，500W@110V~
  • Inrush current in loads: Max. 60A
  • Communication protocol: DALI-2
  • Working temperature: -25°C-50°C
  • Net weight: 109g
  • Dimensions: L112×W35×H67mm
  • Package size: L114×W37×H69mm

Warranty/Certificate: 5 year/ FCC,CE,RoHS,DALI-2
