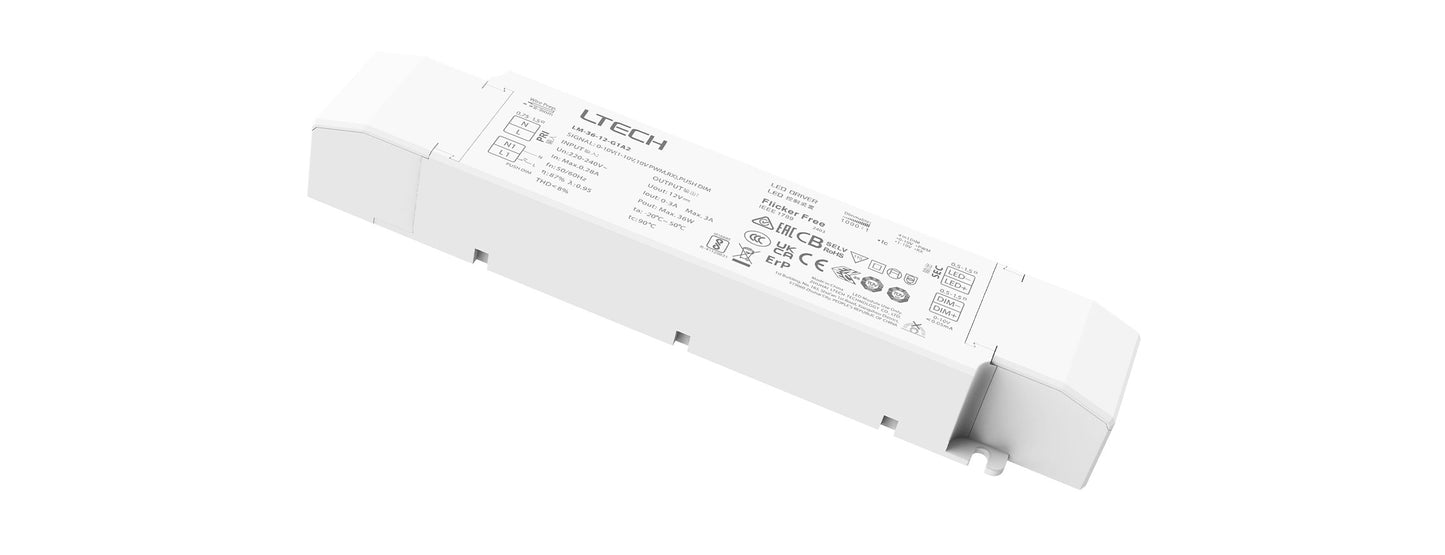

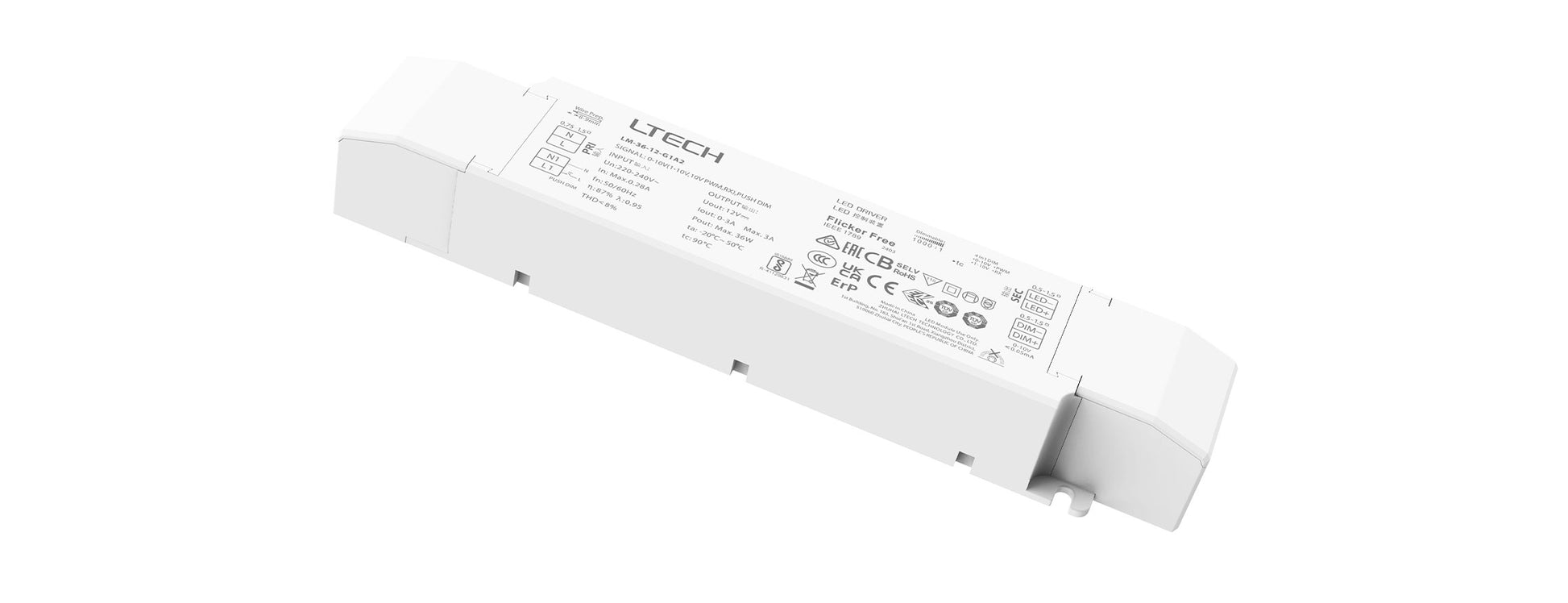

[China] LTECH 0-10V Constant Voltage Dimmable Rubycon LED Driver

[China] LTECH 0-10V Constant Voltage Dimmable Rubycon LED Driver

LM-36-12-G1A2

$ 420.00 SGD
$ 458.00 SGD $ 420.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.
Power
Voltage
Quantity

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

**Ships from China, Lead Time 2-3 Weeks**

Description:

  • Small size and light weight. The housing is made from V0 flame retardant PC
    materials from SAMSUNG/COVESTRO.
  • The clamshell design and screwless type for strain-relief. The design of
    dismountable end cap allows you to adjust the length of housing depending
    on your needs.
  • Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM.
  • Automatic recognition of 0-10V, 1-10V input signal.
  • Dimming from 0~100%, down to 0.1%.
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • High frequency exemption level.
  • Ultra-low consumption of 0-10V ports: < 0.05mA.
  • Overheat, over voltage, overload, short circuit protection and automatic recovery.
  • Innovative thermal management technology intelligently protects the life of the LED driver.
  • Up to 50,000-hour life time.
  • 5-year warranty (Rubycon capacitor).

Features With Models:

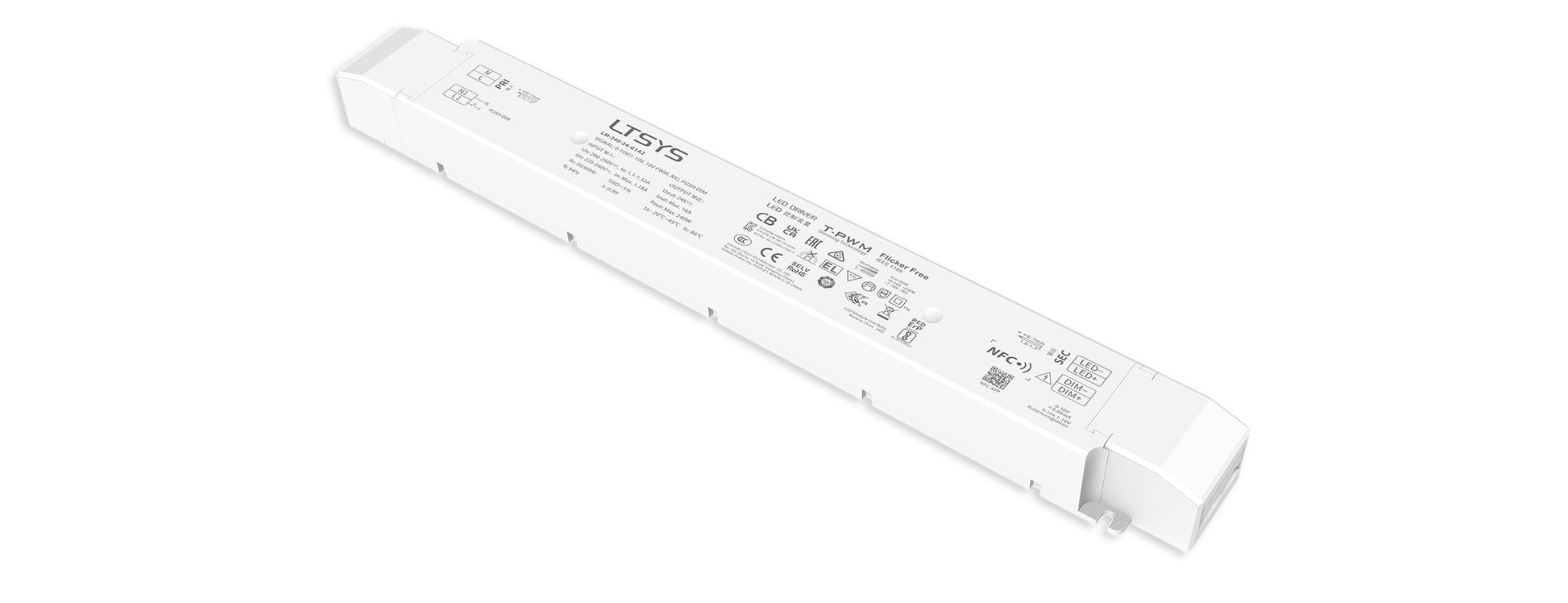

0-10V CV Dimmable Driver NFC full instruction programmable Rubycon: LM-240-24-G1A2

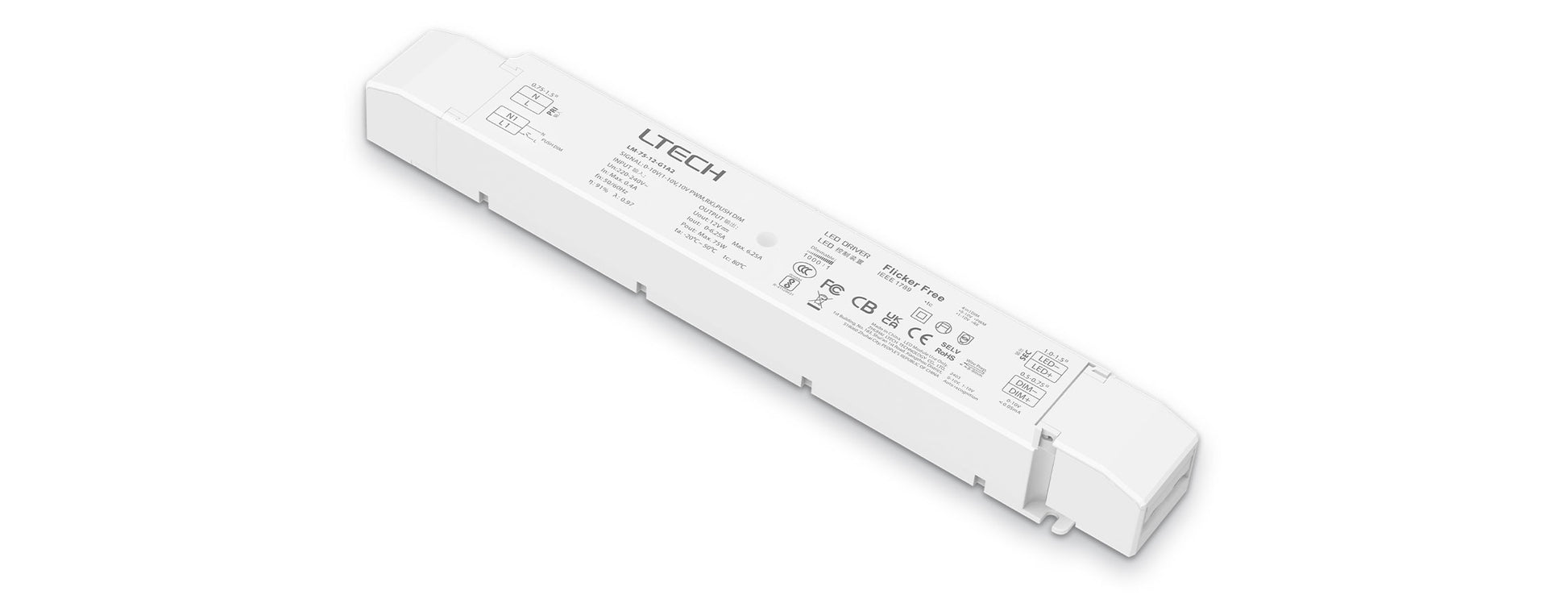

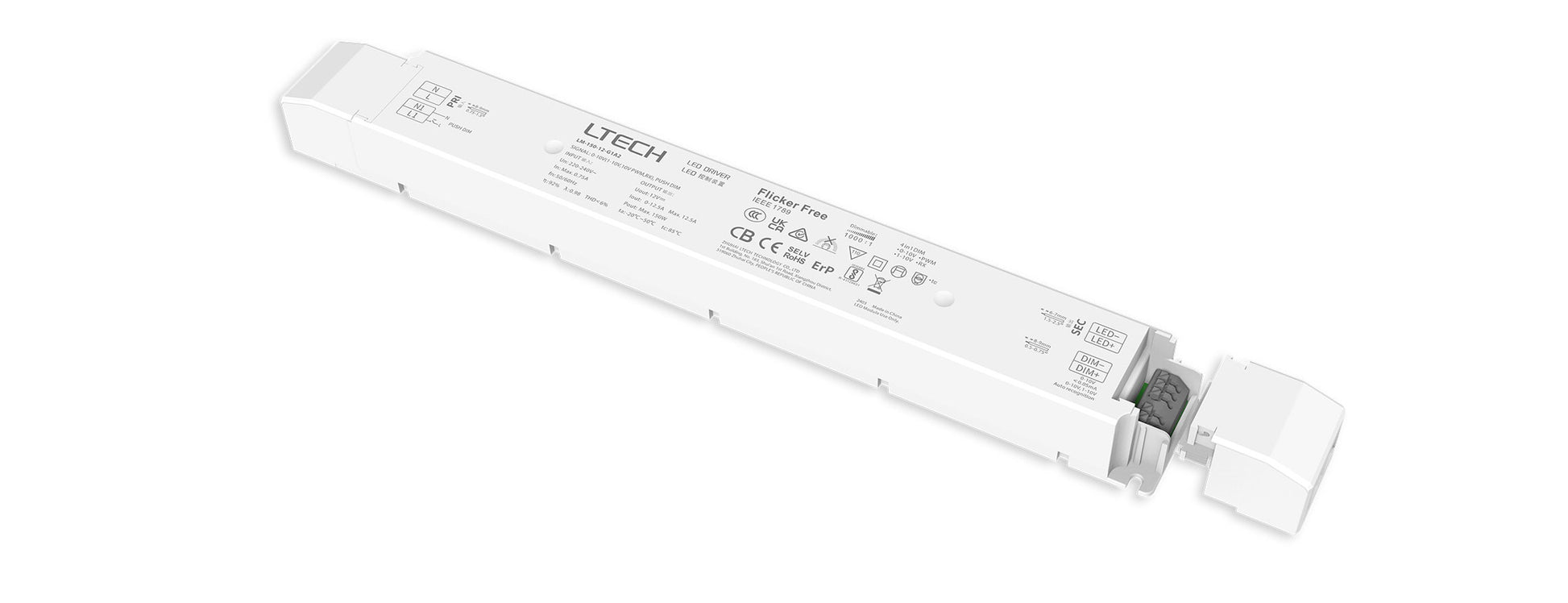

0-10V CV Dimmable Driver Rubycon: LM-36-12-G1A2/LM-36-24-G1A2/LM-75-12-G1A2/LM-75-24-G1A2/LM-100-24-G1A2/LM-150-12-G1A2

Certificates : CCC,ENEC,RCM,EAC,TUV,CE,CB,SELV,RoHS,Class 2,KC,BIS,UKCA

Certificates: CCC,RCM,CE,KC,CB,ENEC,UKCA,SELV,RoHS,欧盟EU ERP,BIS
