[China] Euchips PX24504 DMX RGBW DecoderX10

[China] Euchips PX24504 DMX RGBW DecoderX10

PX24504

PDF Datasheet

$ 340.00 SGD
$ 371.00 SGD $ 340.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Price based on moq 10pcs
Lead time 7-8 weeks

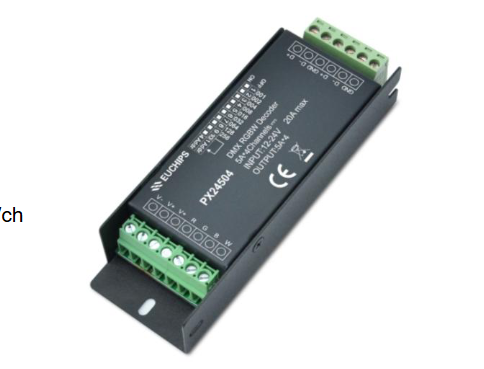

The Euchips PX24504 DMX RGBW Decoder is a compact, 4-channel constant-voltage DMX decoder designed to control RGB, RGBW, single-color LED strips, and other 12–24V DC constant-voltage LED lighting. It converts standard DMX512/1990 control signals into PWM outputs, providing smooth 256-level brightness control for professional lighting applications.

With a maximum output of 5A per channel, the PX24504 supports up to 240W at 12V or 480W at 24V across its four channels. The DMX address can be conveniently configured using the built-in DIP switches. European input/output terminals and plug-in DMX signal terminals simplify installation and wiring.

Key Features

  • 4-channel RGBW DMX decoder
  • Supports DMX512/1990
  • 12–24VDC constant-voltage operation
  • Maximum 5A per channel
  • Total power: 240W at 12V / 480W at 24V
  • 256-level brightness adjustment
  • Manual DMX address setting via DIP switch
  • PWM output for smooth LED dimming and color control
  • European terminals for power/LED connections
  • Plug-in terminals for DMX signal connections
  • Compact size: 120 × 42 × 23 mm
  • Operating temperature: −20°C to +50°C
  • Standby power consumption: <1W
Lihat butiran penuh
