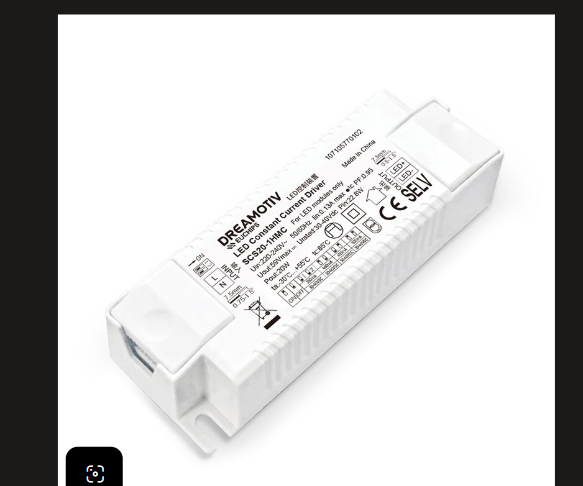

[China] Dreamotiv SCS20-1HMC 20W 500mA Constant Current Driverx10pcs

[China] Dreamotiv SCS20-1HMC 20W 500mA Constant Current Driverx10pcs

SCS20-1HMC

PDF Datasheet

$ 220.00 SGD
$ 240.00 SGD $ 220.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Price based on moq 10pcs
Lead time 1-2 weeks

If you need the product information for [China] Dreamotiv SCS20-1HMC 20W 500mA Constant Current Driver, the model is documented by Euchips/Dreamotiv as a 20W non-dimmable constant-current LED driver. The output current is selectable from 350mA to 500mA, with 500mA providing up to 20W output.

Product Description

The Dreamotiv SCS20-1HMC is a compact, single-channel constant-current LED driver designed for indoor LED lighting applications. It operates from 220–240VAC, 50/60Hz and provides a 30–40VDC constant-current output. The output current can be adjusted using a DIP switch to 350mA, 400mA, 450mA, or 500mA, making it suitable for different LED load requirements.

The driver features up to 92% efficiency, short-circuit, overvoltage and overload protection, and a flame-retardant V0-rated housing. Its detachable end-cover design allows it to be installed either as an independent driver or integrated into a lighting fixture, including applications with limited installation space.

Key Specifications

Specification Details
Model SCS20-1HMC
Type Constant Current, Non-Dimmable
Input Voltage 220–240VAC
Frequency 50/60Hz
Output Current 350 / 400 / 450 / 500mA
Output Voltage 30–40VDC
Maximum Output Power 20W
Efficiency Up to 92%
Power Factor 0.95 @ 230VAC, full load
Protection Short circuit, overvoltage, overload
IP Rating IP20
Working Temperature −30°C to +55°C
Lifetime 50,000 hours
Warranty 5 years
Dimensions 115 × 41 × 28 mm
Net Weight 90g ±5% per piece
Certifications CB, CE, CCC, BIS, KC, RCM, UKCA

The manufacturer's current catalog lists the SCS20-1HMC at 90g gross weight, with dimensions around 115 × 41 × 27mm; the product page specifies 90g ±5% net weight and 115 × 41 × 28mm body dimensions
