Bernstein AG

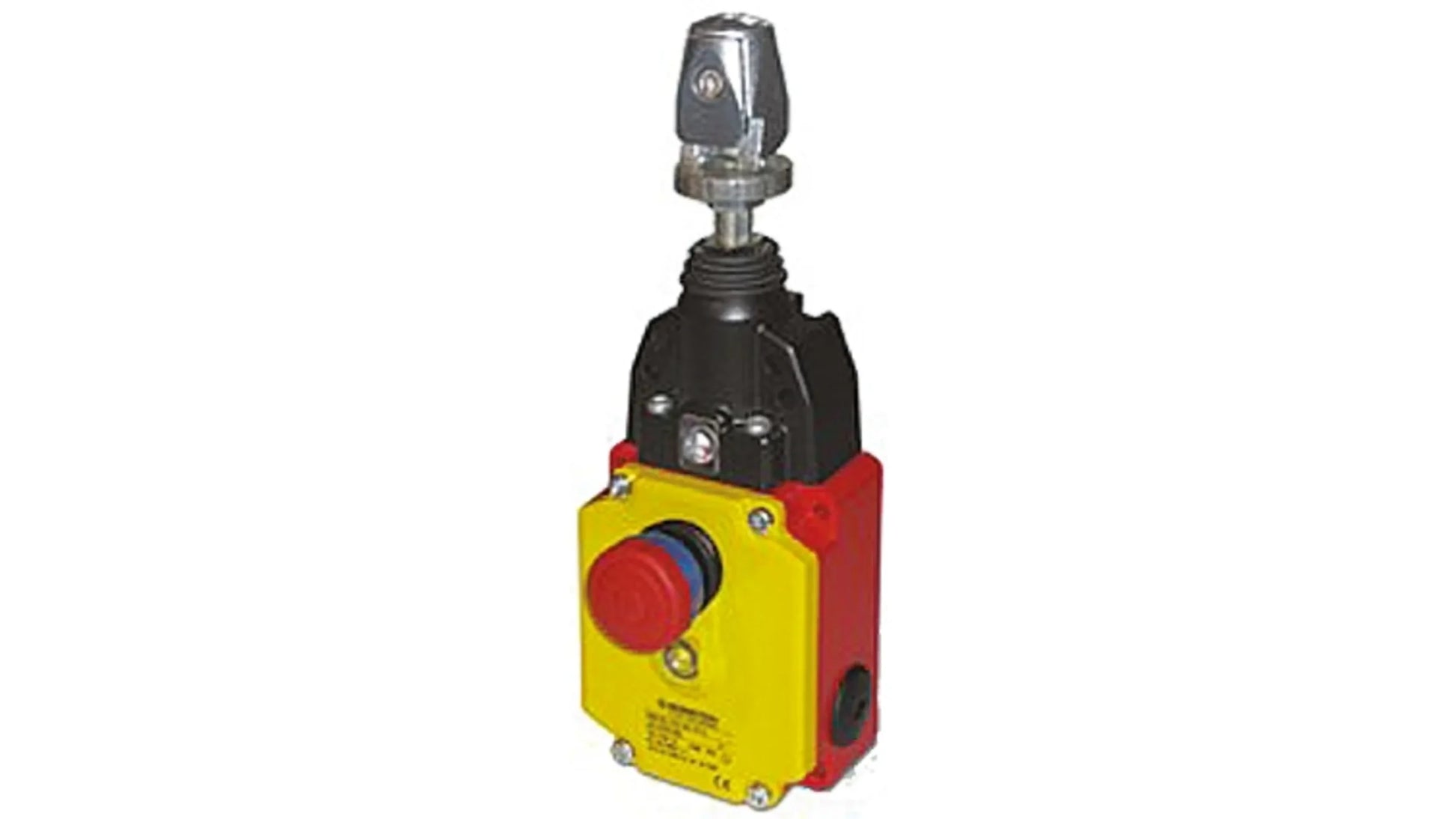

Bernstein AG SRM Rope Pull Switch, 37.5m, Straight

Bernstein AG SRM Rope Pull Switch, 37.5m, Straight

564-769

$ 296.00 SGD
$ 296.00 SGD
Jualan Habis dijual
Penghantaran dikira semasa pembayaran.

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

Lembaran data

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Attribute
Value
Cable Length 37.5m
Mounting Orientation Straight
IP Rating IP67
Number of Poles DP
Series SRM
Length 282mm
Width 90mm
Depth 88mm
Housing Material Die Cast Aluminium
Maximum Operating Temperature +80°C
Dimensions 282 x 90 x 88mm
Conduit Entry M20 x 1.5
Maximum DC Voltage 250V
Maximum AC Voltage 240V
Minimum Operating Temperature -30°C
Bernstein SRM Safety Rope Pull Switches Even under extreme conditions, such as major temperature fluctuations, the SRM rope pull switch continues to work reliably. Rope pull switch manufactured in accordance with DIN EN 60947-5-5 and DIN EN ISO 13850 Protection class IP67 Stable and durable metal housing (aluminium pressure die-casting) Suitable for outdoor use Can be deployed at temperatures between -30 to +80 °C Easy to fasten due to hole template patterns common for most rope pull switch models Flexible handling with three M20 x 1.5 cable entries Easy installation due to the maximum connection space Up to four positively driven NC contacts Separate-action built-in switches
