Bernstein AG SRM Rope Pull Switch, 37.5m, NO/NC, Straight
Bernstein AG SRM Rope Pull Switch, 37.5m, NO/NC, Straight
SKU:564-765
Tidak dapat memuatkan ketersediaan pengambilan
Kongsi
|
Attribute
|
Value
|
|---|---|
| Normal State Configuration | NO/NC |
| Cable Length | 37.5m |
| Mounting Orientation | Straight |
| IP Rating | IP67 |
| Number of Poles | DP |
| Series | SRM |
| Length | 282mm |
| Width | 90mm |
| Depth | 88mm |
| Housing Material | Die Cast Aluminium |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Minimum Operating Temperature | -30°C |
| Conduit Entry | M20 x 1.5 |
| Dimensions | 282 x 90 x 88mm |
| Maximum Operating Temperature | +80°C |

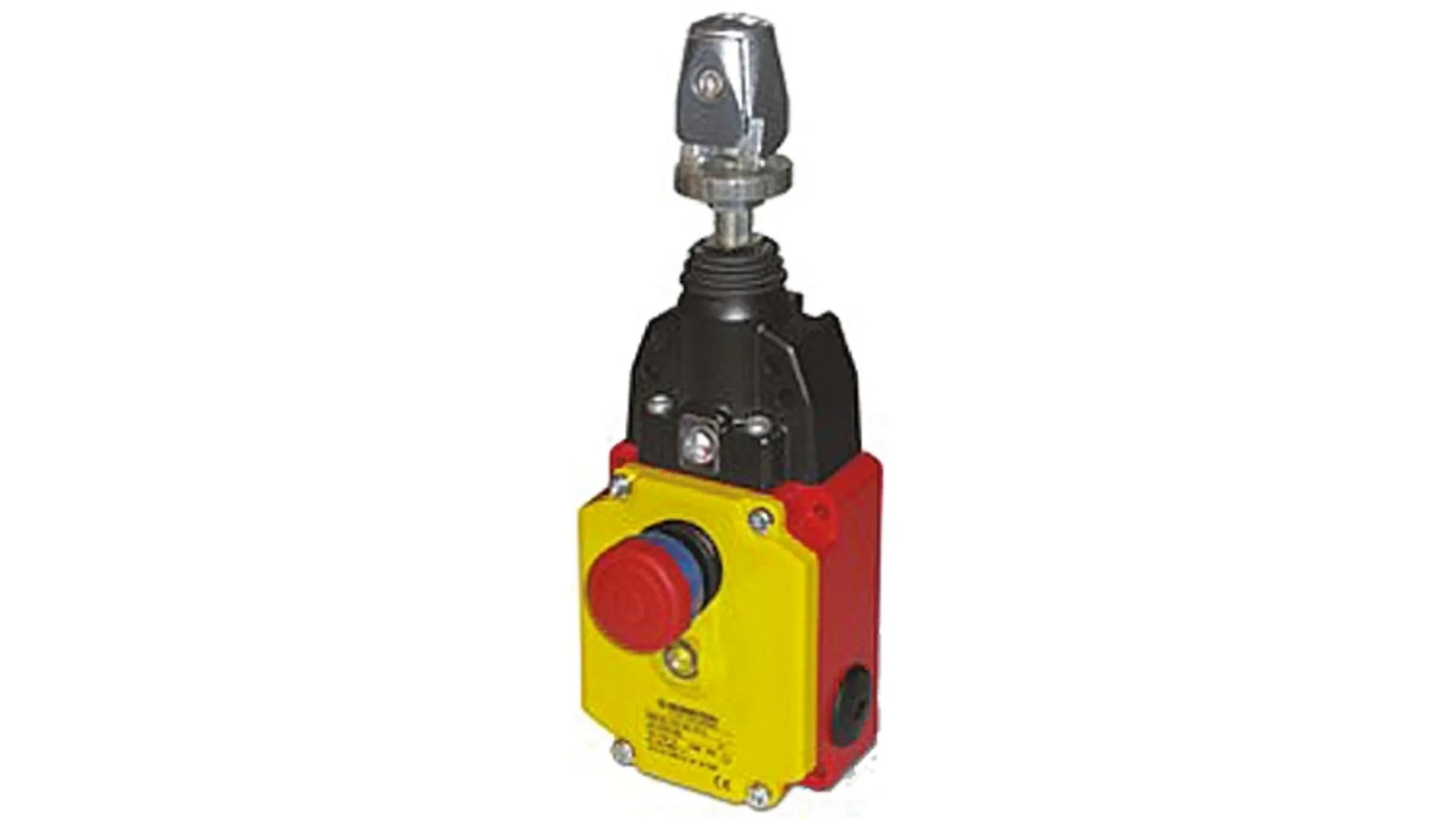

The Bernstein SRM safety rope switch delivers reliable emergency stop control for industrial environments. From the beginning, this safety rope switch ensures quick response and consistent safety performance, especially in applications where traditional emergency stop buttons are not easily accessible. Therefore, it helps protect both workers and machinery effectively.
Additionally, this safety rope switch supports a cable length of 37.5 meters. As a result, it provides efficient coverage for medium to long conveyor systems and production lines. Moreover, the NO/NC contact configuration allows flexible integration into various electrical control systems. Furthermore, the straight mounting orientation simplifies installation and alignment in different setups.
The device features a robust die-cast aluminium housing. Because of this, it offers excellent durability and resistance to mechanical stress. In addition, the IP67 protection rating ensures reliable operation even in dusty and wet environments. For example, it performs effectively in outdoor installations and harsh industrial conditions.
Another key advantage is its wide operating temperature range from -30°C to +80°C. Consequently, the safety rope switch continues to function reliably even during extreme temperature fluctuations. Also, it complies with international safety standards such as DIN EN 60947-5-5 and DIN EN ISO 13850, ensuring dependable performance.
Besides that, the switch includes multiple M20 x 1.5 conduit entries. Therefore, it allows flexible wiring and easy system integration. Likewise, the spacious internal design enables quick and hassle-free installation. Not only that, it supports positively driven contacts for enhanced operational safety.
Finally, the built-in separate-action switching mechanism ensures immediate activation during emergencies. Overall, the Bernstein SRM safety rope switch offers a durable, efficient, and high-performance solution for industrial safety applications.
