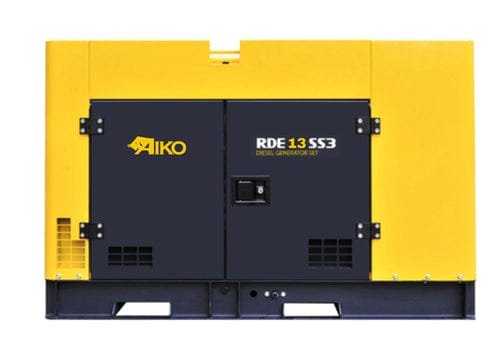

Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3

Aiko 8.5kW Super Silent Diesel Generator 230V/400V 50Hz | Model : RDE13SS3 Description : Robust and durable Compact, robust and flexible structures ensure long service life and quiet operation. Thicker painting treatments stand the wear and tear in extreme environmental conditions. Cleaner, safer and quieter Waterproof canopy ensures protection against ingress of dust and water. All DEHRAY generators meet or exceed relevant standards for noise and emission regulations. Design for easy transportation Lifting hook and forklift access are standard on all units. Compact structure minimize transportation costs. Easy to use Control panel is simple and easy to operate. Built-in monitoring system ensures safe operation and basic parameter display Specification :     RDE13SS3 Rated frequency HZ 50 60 Prime power KVA 10.6 13.1 KW 8.5 10.5 Standby power KVA 11.6 14.5 KW 9.3 11.6 Rated voltage V 400/230 416/240 Rated current A 15.3 18.2 Rated rotation speed r/min 1500 1800 Generator type   FD1C1-4 (Three-phase) Pole No.   4 Phase number   Three-phase Excitation mode   Brushless, self-excitation and constant voltage(with AVR) Power factor COSΦ 0.8(lag) Insulation grade   H Engine type   RD385D Stucture type   3-cylinder, in-lined, 4-stroke, direct-injected, water-cooled Bore×stroke mm 85×90 Displacement L 1.532 Compression ratio   18∶1 Rated power KW 11 13 Lubrication system   Pressure splashed Lube oil brand   Above CD grade or SAE 10W-30, 15W-40 Starter system   12V  Electric starter Starter motor capacity V-KW 12V 3KW Battery capacity V-Ah 12V 65Ah Engine fuel consumption g/KW.h 255 Fuel type   0#(summer)-10#(winter)-35#(chillness) diesel Control panel type   Smartgen digital panel Output Receptacle 2-single phase Connection pole   with Fuel tank capacity L 68 Overall dimension mm 1600×780×1050
