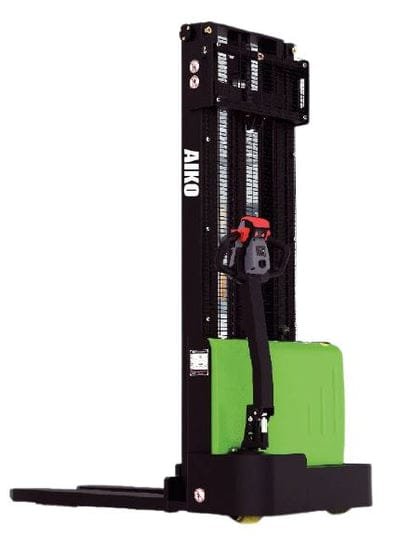

Aiko 2.7m Full Electrical Self-Propelled 1.5 Ton Stacker | Model : PT-AIKO152-2.7

Aiko 2.7m Full Electrical Self-Propelled 1.5 Ton Stacker | Model : PT-AIKO152-2.7 Features :  Strong Chassis The side impact beam, plates, and boxes make the chassis stronger and can greatly reduce stress and deformation caused by heavy load. Rigid mast  The rigidity of the mast is greatly improved by its beam structure to provide smooth lifting and stacking for daily operation. Easy operation  The extra - long and offset tiller with the crawl speed button provides AIKO152 a better visibility and nimble maneuverability when operating in tight space. Efficient hydraulic system  High quality hydraulic pump ensures very little noise , maximum efficiency , durability and shortens lifting time. Specifications :  Distinguishing mark Manufacturer : Aiko Model designation : Aiko 152 Drive unit : Electric  Operator type : Pedestrian Rated capacity : 1500 kg Load Center Distance : 500 mm Load Distance : 808 mm Wheelbase : 1209 mm Weight  Service Weight (include battery) : 550 kg Axle loading , laden driving side/ loading side : 912/1138 kg Axle loading , unladen driving side / loading side : 449/101 kg Battery Continuous running time : 4 hours Intermittent running time : Up to 24 hours Charging time : 2 hours Types,  Chassis Tyre type driving wheels / loading wheels : PU/PU Tyre Size / Driving wheels (Diameter x Width) : Φ210 x 70 mm Tyre Size / Driving wheels (Diameter x Width) : Φ74 x 88 mm Tyre Size / Caster wheels (Diameter x Width) : Φ130 x 55 mm Wheels, number driving, caster/loading ( x=drive wheels) : 1 + 1/4 Track width, front, driving side : 616 mm Track width, rear, loading side : 433 mm Dimensions  Height, mast lowered : 1956 mm Lift Height : 2715 mm Height, mast extended : 3271 mm Height draw bar in driving position min./mzx : 750/1340 mm Height of wheel arms : 90 mm Lowered height : 1700 mm Overall length : 526 mm Length to face of forks : 880 mm Overall width : 60/190/1150 mm  Fork dimensions : 710/795 mm Fork carriage width : 600/685 mm Ground clearance, center of wheelbase : 37 mm Aisle width for pallet 100 x 1200 cross ways : 2036 mm Aisle width for pallet 800 x 1200 length ways : 2136 mm Turning radius : 1392 mm Performance data Travel Speed, laden/ unladen : 3.7/4.0 km/h Lifting Speed, laden/ unladen : 0.08/0.135 m/s Lowering speed, laden/ unladen : 0.105/0.097 m/s Max. grade ability, laden/ unladen : 3/10 %  Service brake type : Electromagnetic  Electric - engine  Drive motor rating S2 60 min : 0.75 kW Lift motor rating at S3 15 % : 2.2 kW The maximum allowed size battery : 260 x 165 x 170 mm Battery voltage/ nominal capacity K5 : 2 x 12/80 V/Ah Batter weight : 2 x 19.6 kg Addition data  Type of drive control : DC *Please take note only for open pallet
