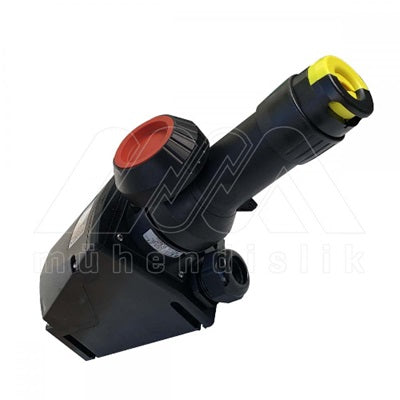

Warom BCZ8060 ATEX EX II 2G Exde IIC T6 Gb IP66 Socket with Plug

Datasheet:

Description:

Lead time 6-8 weeks

Plug and Sockets:
BCZ8060 Series Explosion-proof Plug and Sockets

Explosion protection to
-CENELEC
-IEC
Can be used in
Zone 1 and Zone 2
Zone 21 and Zone 22
2P, 3P, 4P and 5P versions .
Plug insert with power on, power off and socket closed with
plug removed.
GRP (glass fibre-reinforced polyester resin)

Technical data:
 II 2 GD Ex de IIC T6 Gb / Ex tD A21 T80 IP66
Nemko 11 ATEX_____; IECEX; CQST (China)
EN 60079-0:2009, EN 60079-1:2007, EN 60079-7:2007
EN 61241-0:2006, EN 61241-1:2004
IEC 60079-0:2007, IEC 60079-1:2007, IEC 60079-7:2006
IEC 61241-0:2004, IEC 61241-1:2004
GRP (glass fibre-reinforced polyester resin)
Stainless steel
AC 600V~690V, 480V~500V, 380V~415V, 200V~250V, 110V~130V
DC 36V, 24V
16A
IP66
-20~+55
Standard 1 X G3/4 cable gland (plastic), 1 X G3/4plug (plastic)
DQM-I (Ex e) is recommended. Please see P7/16.
Explosion-proof plug and sockets BCZ8060-16/ /
Explosion protection
Certificates
Conformity to standards
Enclosure material
Exposed fastener
Rated voltage
Rated current
Degree of protection
Ambient temperature
Cable entries
Cable gland (optional)
