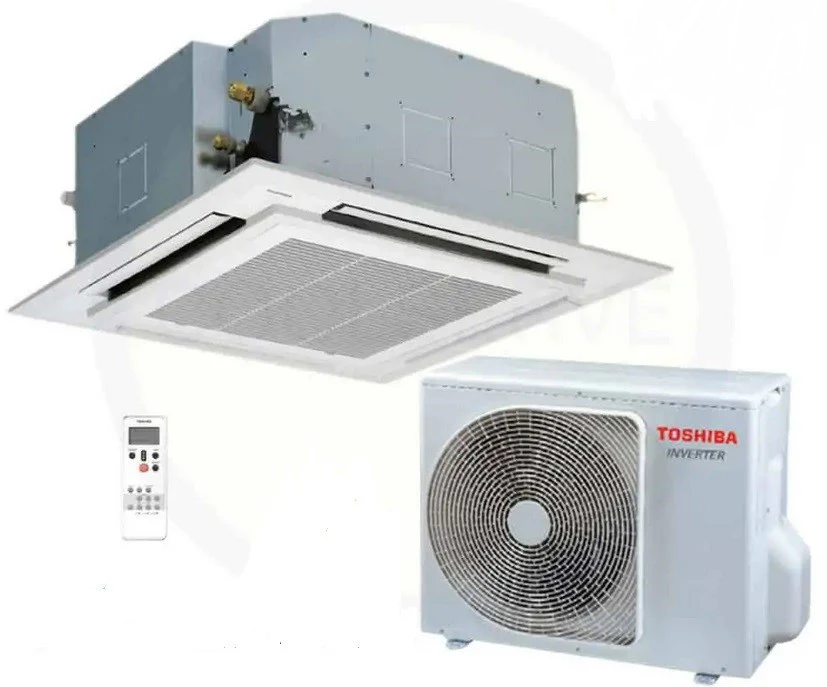

Toshiba Single Split Inverter Ceiling Cassette Air Conditioner – System 1 (4 Ticks)

FOR INSTALLATION SERVICE CLICKHERE

DATASHEET

Product Description:

Brand : TOSHIBA
Warranty Duration : 12 Months
Warranty Type : Manufacturer Warranty
Safety Mark : YES

INSTALLATION NOT INCLUDED. You may approach your regular aircon contractor for installation or get a quotation from our in-house contractor after purchase is completed.

Toshiba has been a dominant player in Japan’s technological innovations and continues to invent and introduce groundbreaking products and services into the global market.

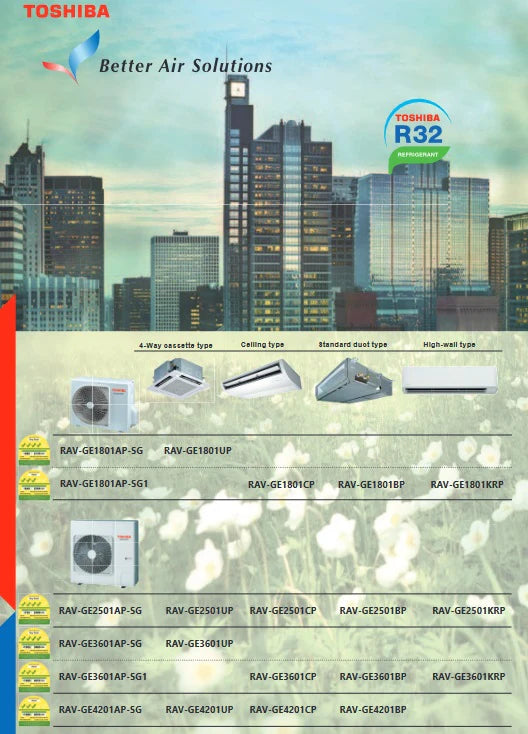

COMBINATIONS:

SYSTEM 1 (4 TICKS) - RAV-GE1801AP-SG // RAV-GE1801UP (Up to Approx. 19, 100 BTU/Hr)
SYSTEM 1 (4 TICKS) - RAV-GE2501UP // RAV-GE2501AP-SG (Up to Approx. 29, 000 BTU/Hr)
SYSTEM 1 (4 TICKS) - RAV-GE3601UP // RAV-GE3601AP-SG (Up to Approx. 38, 200 BTU/Hr)

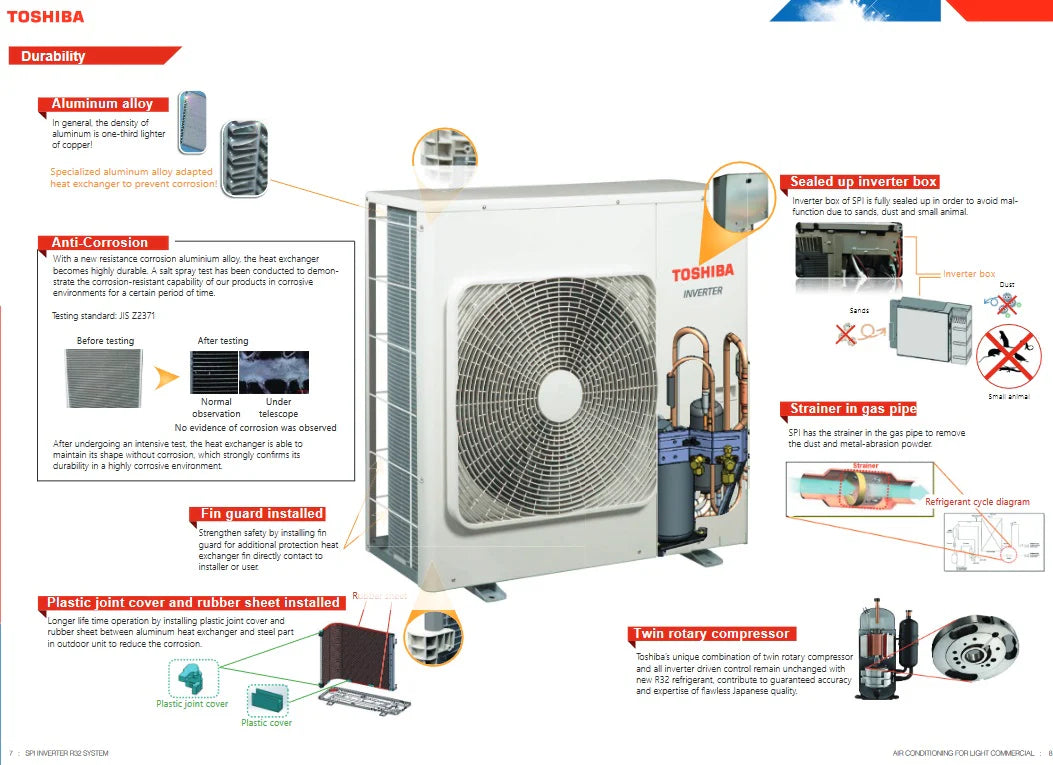

Anti-Corrosion
With a new resistance corrosion aluminum alloy, the heat exchanger becomes highly durable. A salt spray test has been conducted to demonstrate the corrosion-resistant capability of our products in corrosive environments for a certain period of time.

Fin guard installed
Strengthen safety by installing fin guard for additional protection heat exchanger fin directly contact to installer or user.

Plastic joint cover and rubber sheet installed
Longer lifetime operation by installing plastic joint cover and rubber sheet between aluminum heat exchanger and steel part in outdoor unit to reduce the corrosion.

Strainer in gas pipe
SPI has the strainer in the gas pipe to remove the dust and metal-abrasion powder.

Twin rotary compressor
Toshiba's unique combination of twin rotary compressor and all inverter driven control remain unchanged with new R32 refrigerant, contribute to guaranteed accuracy and expertise of flawless Japanese quality.

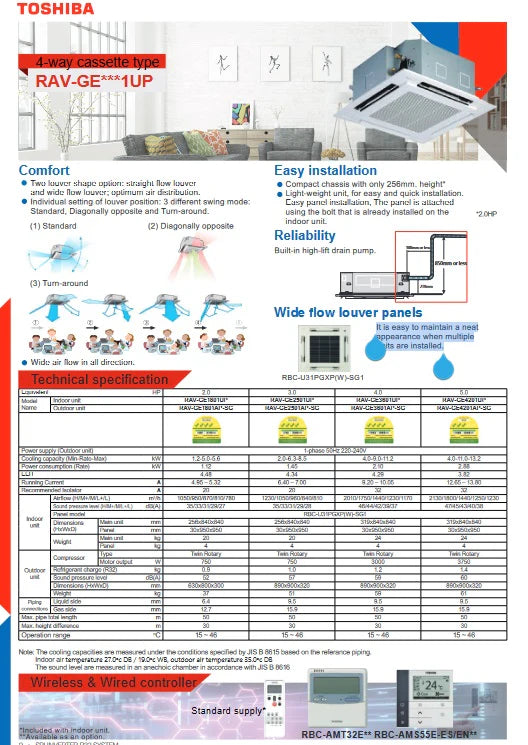

Comfort
* Two louver shape option: straight flow louver and wide flow louver, optimum air distribution.
* ⁠Individual setting of louver position: 3 different swing mode: Standard, Diagonally opposite and Turn-around.

Easy installation
* Compact chassis with only 256mm. height*
* Light-weight unit, for easy and quick installation. Easy panel installation, the panel is attached using the bolt that is already installed on the indoor unit.

Reliability
Built-in high-lift drain pump.

Wide flow louver panels
It is easy to maintain a neat appearance when multiple units are installed.

WARRANTIES:

• 5 YEARS – OUTDOOR COMPRESSOR

• 1 YEAR – SPARE PARTS WARRANTY BY RESPECTIVE AGENT / MAKER
