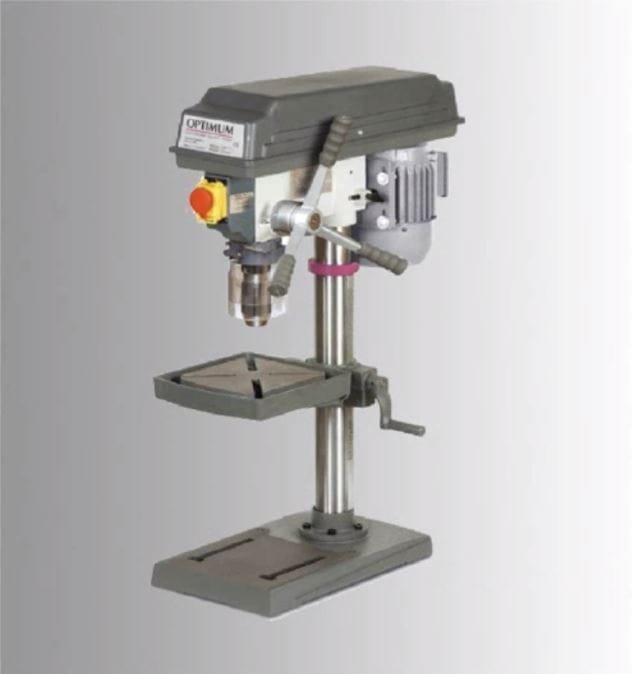

Optimum 16mm 500W Bench Drill Press | Model : B17PRO

16mm 500W bench drill press | Model : B17PRO

The Optimum B17PRO Bench Drill Press is a precision-engineered drilling machine designed for workshops, fabrication units, maintenance departments, and training centers. It offers a 16mm drilling capacity, so it easily handles metal, wood, and industrial drilling applications with accuracy and stability.

In addition, the machine features a 500W industrial-grade motor combined with a belt-driven transmission system. Therefore, it delivers smooth and reliable drilling performance across multiple speed settings.

Moreover, the adjustable drilling table, precision spindle system, and MT2 taper improve operational flexibility and drilling accuracy. As a result, users benefit from stable performance and precise drilling control during continuous operation.

Specifications : Drilling Capacity : Drilling Capacity in steel (St. 37) : 16mm Continuous Drilling Cap. Steel : 12mm Motor Power : 500W (230V) Spindle Seat : Spindle Seat (Taper) : MT2 Spindle sleeve stroke : 65mm Throat : 152mm Speeds : Spindle speed : 500 - 2520 rpm Number of steps : 5 steps Drilling Table : Table size (L x W): 235mm x 220mm T-slot size : 12mm Drilling Table inclination : +- 45 degrees Drilling Table slewable : 360 degrees Max. distance spindle - table : 325mm Max. distance spindle - stand : 530mm Dimensions : Column Diameter : 60mm Dimensions (L x W x H) : 600 x 260 x 860mm Gross Weight : 39kg Scope of delivery : Morse taper MT2-B16
