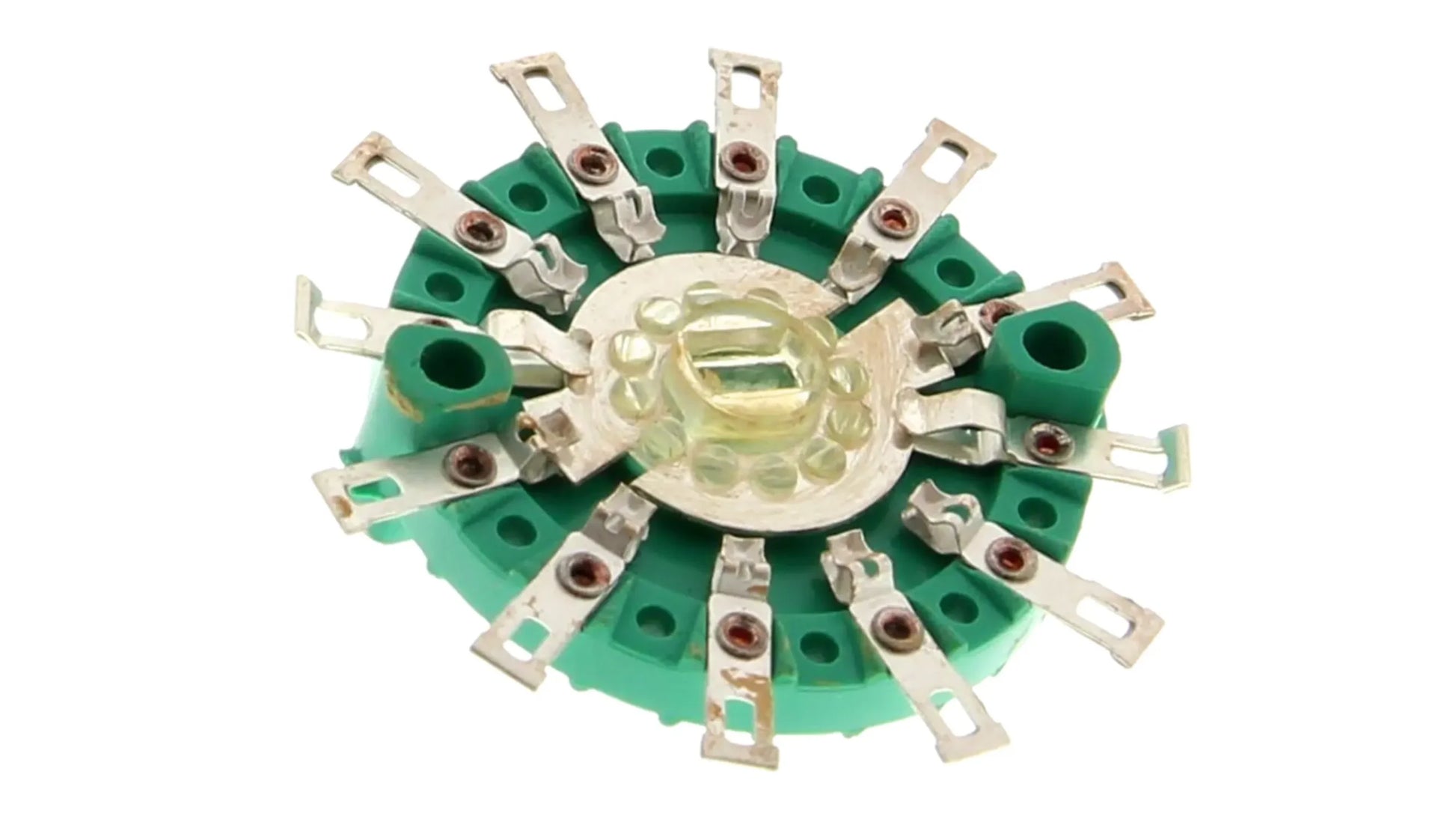

NSF Rotary Switch Wafer 5-Positionx2pcs

NSF Rotary Switch Wafer 5-Positionx2pcs

352-250

$ 109.00 SGD
$ 109.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

แผ่นข้อมูล

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Attribute
Value
Diameter 25.4mm
Number of Switch Positions 5
Voltage Rating 300V ac/dc
Number of Contacts 2
Contact Configuration DP5T
Contact Current Rating 150 mA @ 250 V ac
Contact Material Silver Plated Brass
Contact Type Shorting
Minimum Operating Temperature -40°C
Maximum Operating Temperature +100°C
Mounting Type Panel Mount
Terminal Type Solder
Miniature Shaft Assembly & Wafers Miniature Shaft Assembly Double-spring detent mechanisms in miniature size Life expectancy >100000 detent operations 30° indexing and adjustable end stops Takes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used) 6mm diameter shaft and M10 x 0.75 mounting bushes Overall length 94mm, front shaft length 12mm Optional accessories are available for to suit individual requirements Wafers Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts Available in break before make (bbm), and make before break (mbb) versions 25mm diameter
