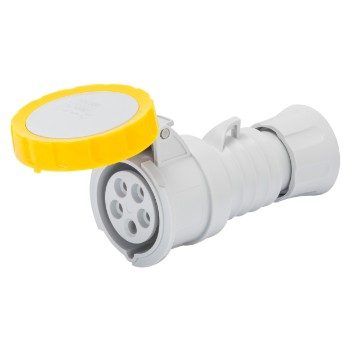

GEWISS GW62034 CONNECTOR 2P+E 110V 32A 4H IP67
GEWISS GW62034 CONNECTOR 2P+E 110V 32A 4H IP67
SKU:GW62034H
ราคาปกติ
$ 82.00 SGD
ราคาปกติ
$ 90.20 SGD
ราคาโปรโมชัน
$ 82.00 SGD
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ปริมาณ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical Info
Color Yellow
Rated current (A)32
IP degree IP66/IP67/IP68/IP69
No. of poles 2P+E
Mechanical resistanceIK09
Reference h4
Type Straight connector
Rated voltage100 - 130 V
Frequency50/60 Hz
Terminal tightening capacity2.5-6mm² flexible cables - 2.5-10mm² rigid cables
Cable clamp tightening capacity9.2-19.9 mm
Operating temperature-25 +55 °C
Type of wiring With screw
Type of material Halogen-free in compliance with EN 60754-2
Electrocod2211
Glow wire test850 °C (active parts) - 650 °C (passive parts)
Total number of operations> 2000
Permissible overload42 A
Breaking capacity at 1.1 Un40 A
Insulation resistance> 10 MΩ
Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts)
Ware Number85366990
