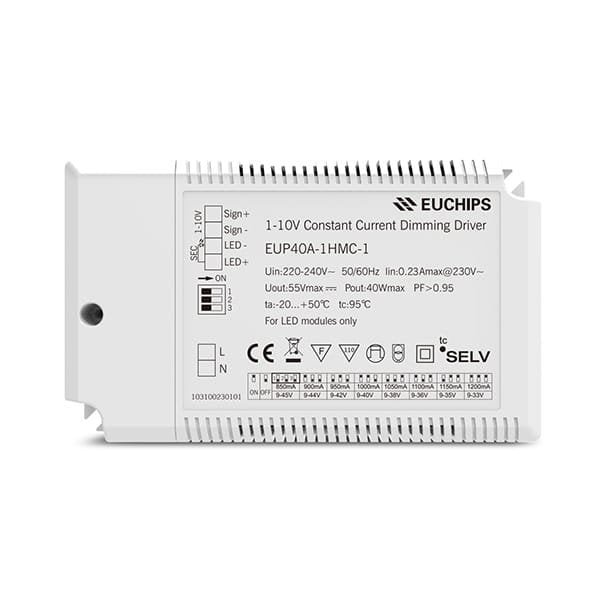

Euchips EUP40A-1HMC-1 40W 1050mA 0/1-10V

The 40W LED Dimming Driver EUP40A-1HMC-1 from Euchips is designed for reliable and efficient indoor LED lighting systems. It provides a stable constant current output and supports multiple dimming options. Therefore, it is widely used in LED panel lights, downlights, and other commercial lighting applications.

This 40W LED dimming driver operates with an input voltage of 220-240VAC, which makes it compatible with standard electrical installations. In addition, the driver delivers adjustable output current levels ranging from 850mA to 1200mA. The output current can be selected easily using the built-in DIP switch, allowing installers to match the driver with different LED fixtures.

The driver also supports 3-in-1 dimming technology. For example, users can control brightness using 1-10V signals, PWM signals, or adjustable resistance. As a result, the lighting level can be adjusted smoothly to suit different environments and energy requirements.

Furthermore, the 40W LED dimming driver provides a stable output voltage range of 9-45VDC, depending on the selected current level. The dimming performance is smooth and flicker-free. Because of this, it helps create comfortable and consistent lighting conditions in indoor spaces.

Efficiency is another important advantage. The driver achieves up to 88% efficiency and includes a built-in active PFC function. Consequently, it helps reduce energy loss while maintaining reliable performance.

Safety features are also integrated into the design. The driver includes short-circuit protection, overload protection, and over-temperature protection. Therefore, the system can automatically recover once the fault condition is removed.

The compact housing measures 137 × 82 × 31 mm and weighs 225 g, which allows easy installation inside lighting fixtures or control boxes.

Key Features

• 40W constant current LED driver

• Adjustable 850-1200mA output current

• 1-10V, PWM, and resistance dimming support

• 220-240VAC input voltage

• High efficiency up to 88%

• Active PFC built-in

• Flicker-free smooth dimming

• Protection against short circuit, overload, and over-temperature

• Suitable for LED panel lights, downlights, and indoor lighting
