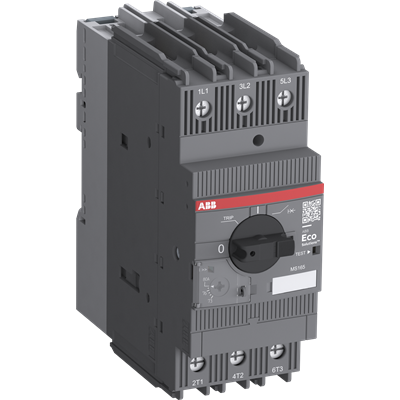

ABB 1SAM451000R1019, MS165-80, Manual Motor Starter 70A to 80A

General Information

Extended Product Type: MS165-80
Product ID: 1SAM451000R1019
EAN: 4013614536632
Catalog Description: MS165-80 Manual Motor Starter 70 ... 80 A
Long Description: MS165 is a compact and powerful range for motor protection up to 45 kW (400 V) / 80 A
in width of 55 mm. They offer a reliable protection for motors in the event of overload or
phase failure. The devices have trip class 10.
This type has also a clear and reliable indication of fault in a separate window in the
event of short-circuit tripping. Further features are the build-in disconnect function,
temperature compensation, trip-free mechanism and a rotary handle with a clear switch
position indication. The manual motor starter (also known as motor protection circuit
breaker or manual motor protector) is suitable for three- and single phase applications.
The handle is lockable to protect against unauthorized changes. Auxiliary contacts,
signaling contacts, undervoltage releases, shunt trips, power in-feed blocks are
available as accessory. These
are suitable throughout the MS116/MS132/MS165 range.
Display Name: MS165-80
