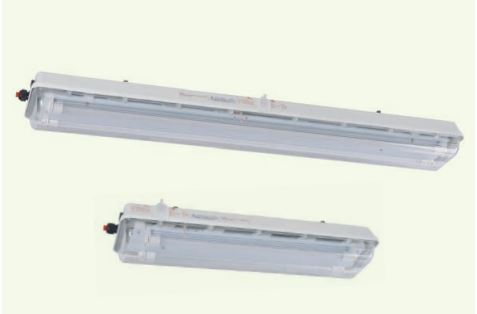

WAROM GRP BAY 51 Q LED 2XJ EMERGENCY LED 2 X 18WATT / ATEX/ZONE 1 WITH STAINLESS STEEL CEILING BRACKET
WAROM GRP BAY 51 Q LED 2XJ EMERGENCY LED 2 X 18WATT / ATEX/ZONE 1 WITH STAINLESS STEEL CEILING BRACKET
SKU:BAY51-LED18X2L J
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Description of equipment
BAY51-LED…J series explosion-proof emergency LED light fittings for fluorescent lamp is type “d” and “t”. It contains
series:9W×2, 18W×2 and 28W×2. The enclosure of these series have same structure but different volume of light source.
the enclosure is comprised of rapid-open cover, connecting cover, body, back cover and glass cover. The enclosure
contains three compartment: power compartment in which LED control device, LED emergency device, charging battery,
terminals are installed and two light source compartments in which lamp tubes are installed. The material of rapid-open
cover, body and back cover is aluminium alloy ( ENAC-AlSi12(b)). A reflector is provided which is made by Q235. Four
threaded holes are provided to install with appropriate certified cable glands or plugs. The form of thread entry can be
M25×1.5 or NPT3/4. The emergency function can be turned on after power-off automatically.
Rating
Rated voltage range: 110～265 V AC
Light source: LED
Rated power: 9W×2, 18W×2, 28W×2
