Vossloh-Schwabe CC EASYLINE SIMPLE FIX C-R1 ECXe700.383 28W Driver

Product Details:

Data Sheet for EASYLINE SIMPLE FIX C-R1 ECXe700.383

Typical Applications
Built-in in compact luminaires for

• Retail lighting

• Downlights

• Panels

Product features

• Compact casing shape

Electrical features

• Mains voltage: 220–240 V ±10%

• Mains frequency: 50–60 Hz

• Push-in terminals primary: 0.5–1.5 mm² secondary: 0.75–1.5 mm²

• Power factor at full load: 0.97 / 0,99 with 186941, 186930

• Open circuit voltage (Umax.): 60 V

• Secondary side switching of LED modules is not allowed.

Safety features

• Protection against transient main peaks up to 1 kV (between L and N)

• Electronic short-circuit protection

• Overload protection

• Protection against "no load" operation

• Degree of protection: IP20

• Protection class II

• SELV

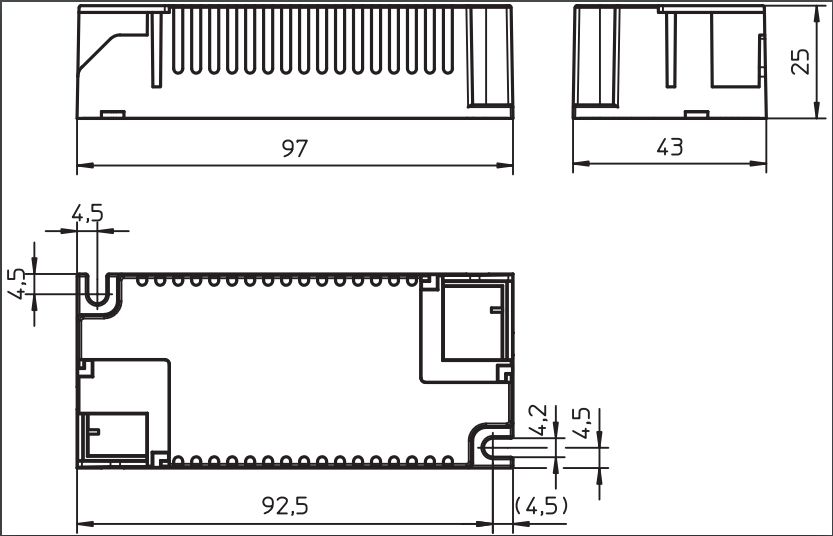

Dimensions

• Casing shape: K33.4

• Length: 97 mm

• Width: 43 mm

• Height: 25 mm
