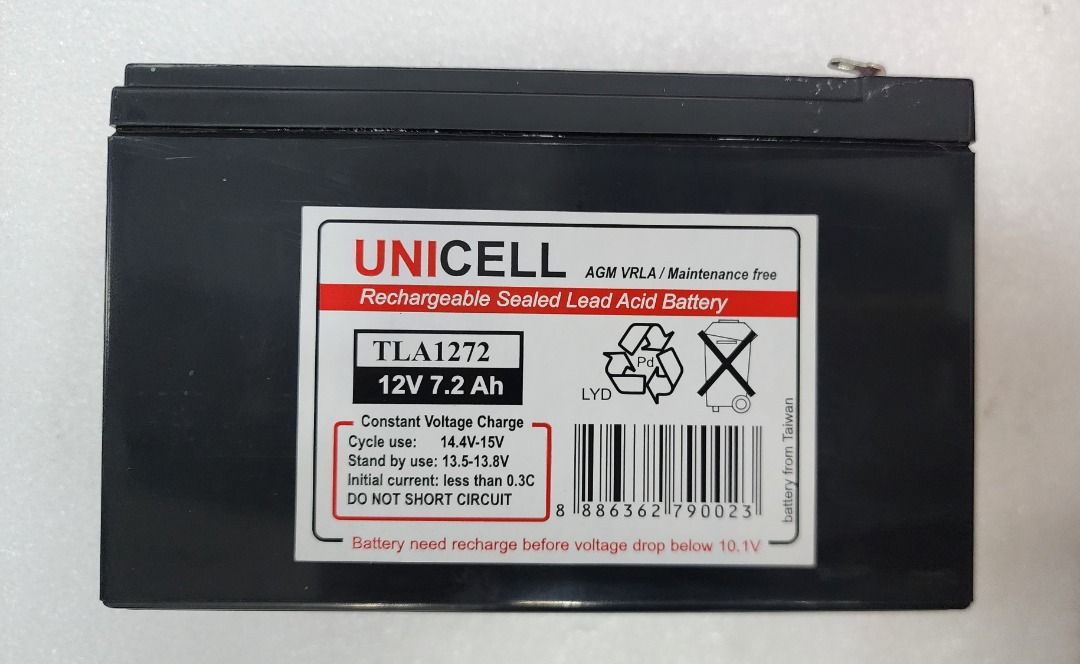

Unicell 12V 7.2Ah Taiwan battery

Unicell 12V 7.2Ah Taiwan battery

TLA1272

$ 38.00 SGD
$ 38.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน

Request For Quote
Specifications
  • Cells Per Unit: 6
  • Voltage Per Unit: 12 V
  • Capacity: 7.2 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
  • Weight (kg): Approx. 2.40kg. (5.29 lbs.)
  • Maximum Discharge current (A): 100A/130A (5sec.)
  • Internal Resistance Approx.: Approx. 23mΩ
  • Operating Temperature Range:
    - Discharge：-15℃~50℃(5°F~122°F)
    - Charge：-15℃~40℃(5°F~104°F)
    - Storage：-15℃~40℃(5°F~104°F)
  • Nominal Operating Temperature Range: 25°C ± 3°C (77°F ± 5°F)
  • Float charging voltage: 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
  • Recommended Maximum Charging current limit: 2.16A
  • Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
  • Self Discharge: CSB Batteries can be stored for more than 6 months at 25°C (77°F)
    Please charge batteries before using. For higher temperatures the time interval will be shorter.
  • Terminal: F2 Faston Tab/ .250"
  • Container Material: ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
  • Size: L151 x W65 x H93/HT101 mm
