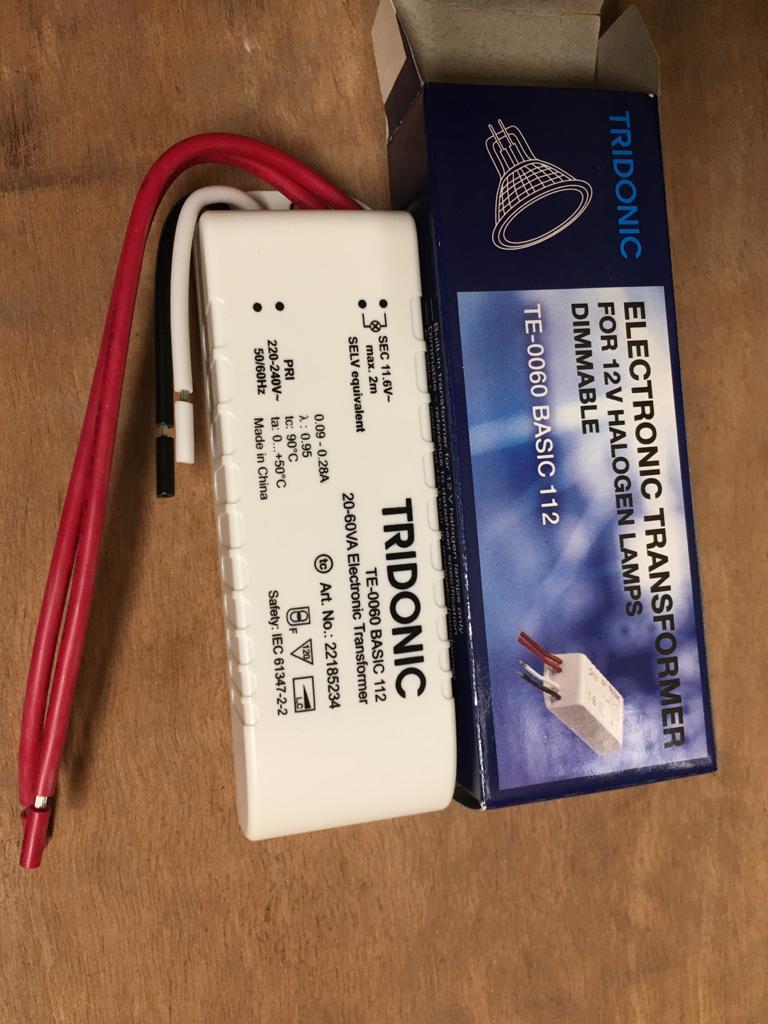

Tridonic Electronic Transformer For 12V 60W Halogen Lamps
Tridonic Electronic Transformer For 12V 60W Halogen Lamps
SKU SKU:22185234
ราคาปกติ
$ 8.00 SGD
ราคาปกติ
$ 9.00 SGD
ราคาโปรโมชัน
$ 8.00 SGD
ราคาต่อหน่วย
/
ต่อ
แบ่งปัน
Product description
• Average life = 30,000 hours (at ta max. 50 °C
with a failure rate ≤ 0.3 % per 1,000 hours)
• Compact dimensions
• Screw terminals for solid and flexible wires
• Inbuilt transformer
• Able to drive any low-voltage lamp on the market up to max. 60 W
• Coloured single packaging (optional)
• Short-circuit switch-off with automatic restart
• Protection against overload
we refrain from a general approval of LED bulbs operated with this device
Tridonic TE-0060 BASIC 112 | |
Technical Details: | |
Type | TE-0060 BASIC 112 fly lead |
Primary voltage | 220 – 240 VAC |
Input current (at 240 V 50 Hz) |
0.09 – 0.28 A |
Secondary voltage 230 V |
11.6 V |
Secondary voltage 240 V |
12.0 V |
Ambient temperature ta |
0 ... +50 °C |
Max. casing temperature |
90 °C |
Max. torque primary/ secondary terminalblock |
- |
Primary connection | 2 leads AWG 20, length: 60 mm |
Secondary connection | 2 leads AWG 18, length: 140 mm |
Mains frequency | 50 / 60 Hz |
Lifetime | 30,000 h |
λ | > 0.95 |
Frequency of output | 45 kHz |
Softstart | < 1 s |
Max. lead length | 2 m |
