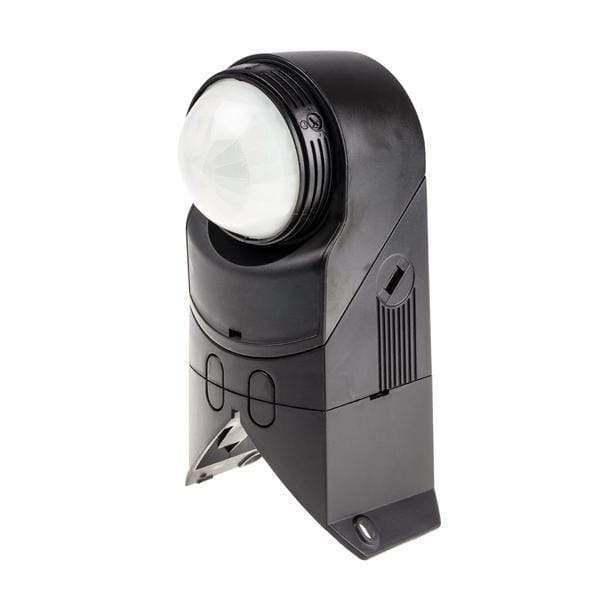

Theben / Timeguard Lighting Controller Motion Detector Surface Mount
Theben / Timeguard Lighting Controller Motion Detector Surface Mount
SKU:7660094
สต็อกสินค้าเหลือน้อย: เหลือ 1 ชิ้น
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical data sheets
*Check stock before ordering. Lead time 4 working days.*
Product Details
MLSA360N 360° PIR Light Controller
Timeguard’s enhanced PIR detectors are suitable for either indoor or outdoor. This MLSA360N PIR offers multiple mounting options with full 360° detection over a 12m range for optimum coverage.
Adjustable PIR detector with Pan & Tilt sensor aiming adjustment
Enhanced 360° detection zone for optimum coverage
Up to 12m detection range at 3m mounting height
Multiple mounting options – surface, ceiling or corner mounting
Immediate illumination of lights on exit and approach
Light ON time adjustment 5 seconds to 12 minutes
LUX (light level) adjustment – Day to Night (5 to 1000 LUX – permanently ON when at max)
Total PIR switching 2000W incandescent/halogen, 600W fluorescent/110W compact fluorescent & electronic ballast
IP45 weatherproof rating
Optional mode settings – Manual, Dusk to Dawn and Test mode
Operating temperature -20° to 40°C
Corner mount bracket supplied in pack
Easy installation with Fast-fix terminal block connection
Specifications
| Attribute | Value |
| Controller Type | Motion Detector |
| Sensor Type | PIR |
| Voltage Rating | 230 V ac |
| Mount Type | Ceiling, Surface |
| Range | 12 m |
| Power Consumption | 2kW |
| Time Delay | 5 s → 12 min |
| Length | 125 mm |
| Width | 80 mm |
| Height | 95mm |
