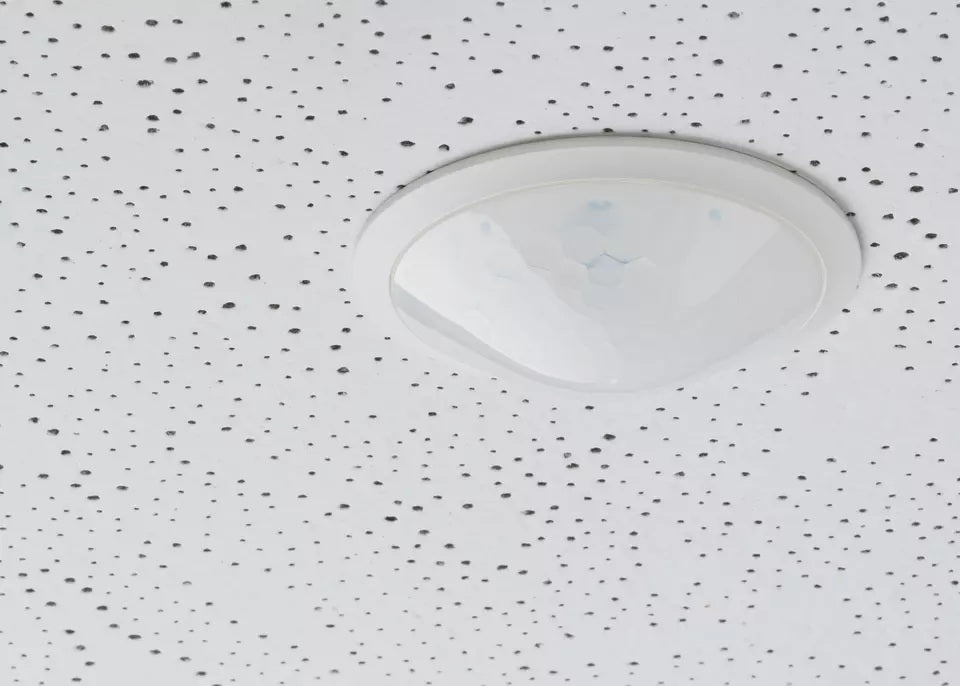

Theben The Mova IP54 PIR Motion Detector For False Ceiling

Theben The Mova IP54 PIR Motion Detector For False Ceiling

S360-100 FLAT DE WH

$ 105.00 SGD
$ 114.00 SGD $ 105.00 SGD
ลดราคา ขายหมดแล้ว
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
Model Name

Request For Quote

Delivery

Singapore

1-3 work days ( 90% of Shipments)

For items that are stocked outside Singapore, it takes 7 - 14 work days.

International

7-14 work days.

Pick FEDEX at checkout for reliable and Fast Deliveries.

Taxes

Singapore

GST Not Applicable - Prices displayed are final prices.

International

As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.

แผ่นข้อมูล

cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895

We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !

Technical Details:

**Lead Time 1 Week**

The SendaP 9070910 Service Remote Control for Motion Sensors

Functional Description:

  • Passive infra-red motion detector for ceiling installation in false ceilings
  • Circular detection area 360°, up to Ø 8 m (50 m2) at mounting height 3 m
  • 1 channel light (Relay 230 V)
  • Automatic motion and brightness-dependent control for lighting
  • Daylight sensor mode for brightness-dependent control of the lighting, switchable via app
  • Mixed light measurement
  • Operation as fully automatic device
  • Brightness switching value configurable, teach-in function
  • Pulse function for staircase light time switch
  • Time delay configurable
  • Detection sensitivity configurable
  • Test mode for checking function and detection area
  • Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
  • One of these optional remote controls is required for changing the values and attitudes:
  • Management remote control SendoPro
  • Installation remote control theSenda P
  • Optional user remote control: theSenda S

Technical Data:

Operating voltage 230 V AC
Frequency 50 Hz
Installation height 2 - 4 m
Installation type Ceiling installation, Indoor
Colour White
Power consumption ~0.5 W
Light measurement Mixed light measurement
Setting range brightness 30 - 3000 lx
Light switch-off delay  10 s - 60 min
Type of contact light Relay 230 V/10 A µ-contact
Lamp types Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load 2300 W
Compact and flourescent lamps 1150 VA (cos φ = 0,5)
Inrush current max. 400 A / 200 µs
LED lamp < 2 W 25 W
LED lamp 2-8 W 250 W
LED lamp > 8 W 250 W
Type of connection Spring terminals
Switching output Light
Detection range 50 m² (ø 8 m | 360°)
Detection angle 360°
Ambient temperature -15°C ... 50°C
Impact resistance IK04
Type of protection IP 54 (when fitted)



ดูรายละเอียดทั้งหมด
