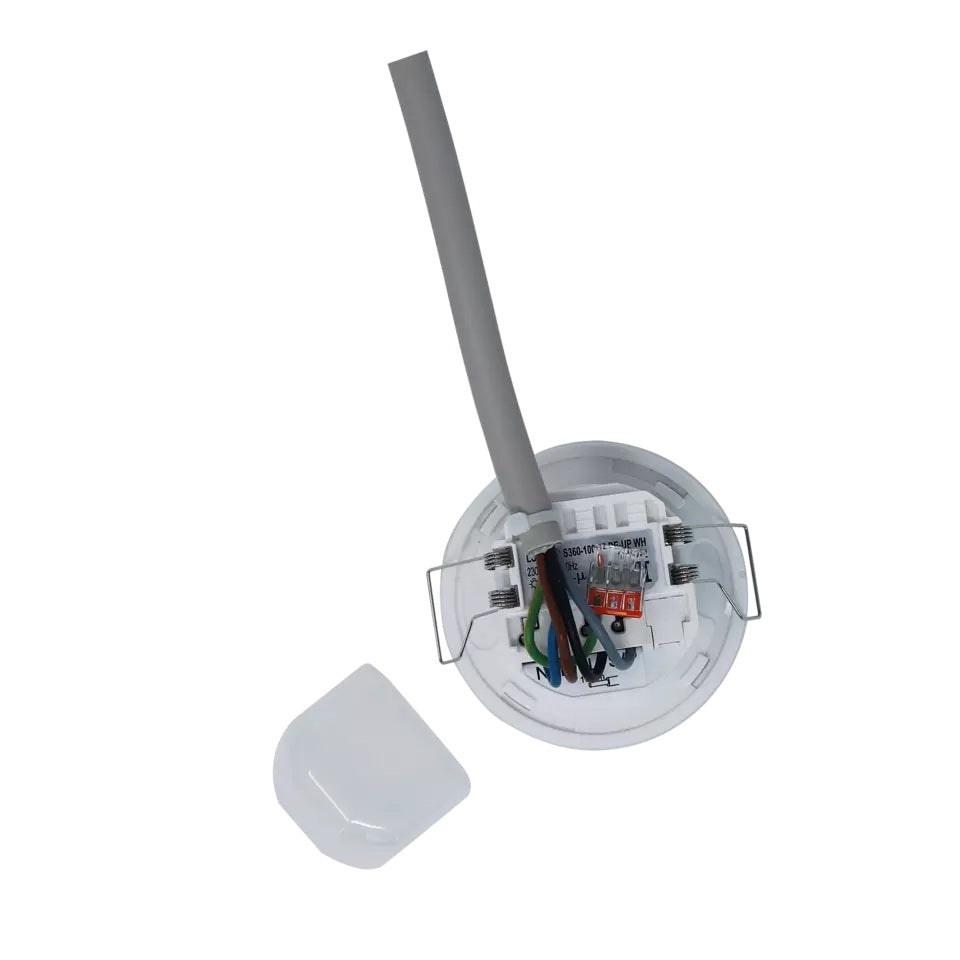

Theben The Luxa 103 S360-100-12 DE-UP WH IP54 Presence Detector Flush Mount
Theben The Luxa 103 S360-100-12 DE-UP WH IP54 Presence Detector Flush Mount
SKU SKU:1030052
ราคาปกติ
$ 85.00 SGD
ราคาปกติ
$ 91.00 SGD
ราคาโปรโมชัน
$ 85.00 SGD
ราคาต่อหน่วย
/
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:
**Lead Time 1 Week**
Functional Description:

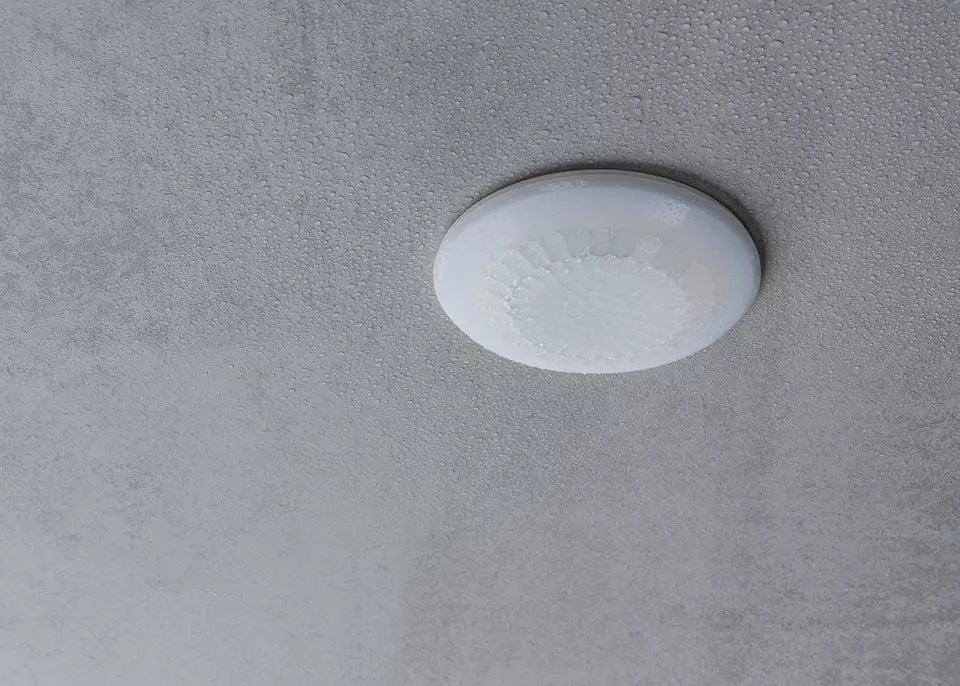

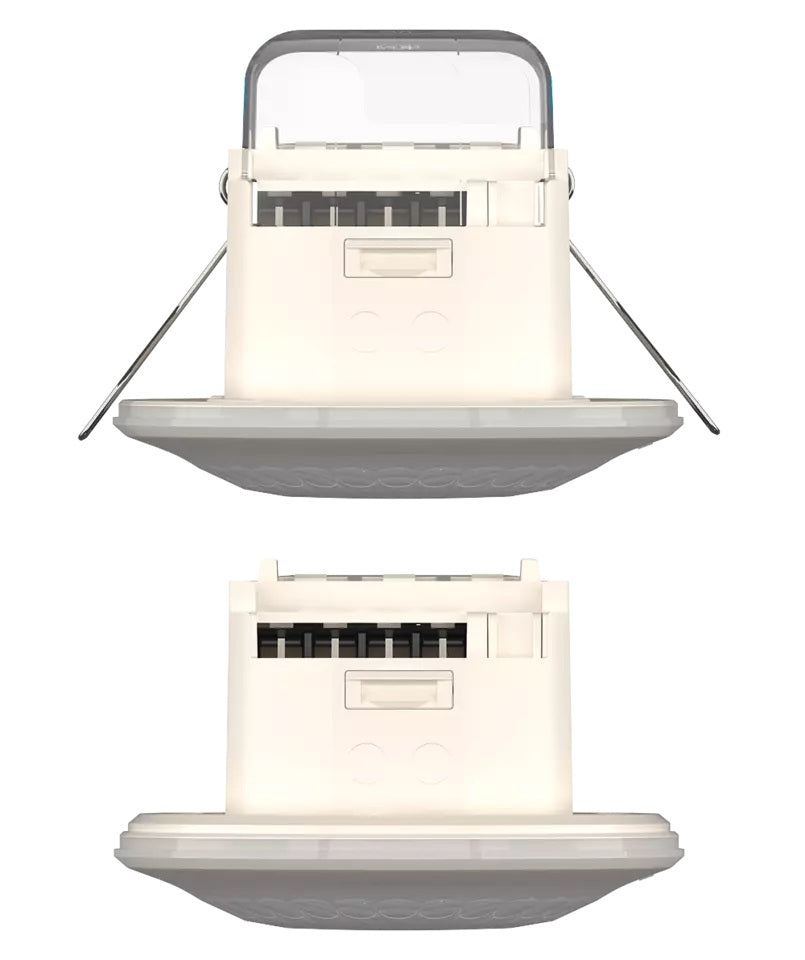

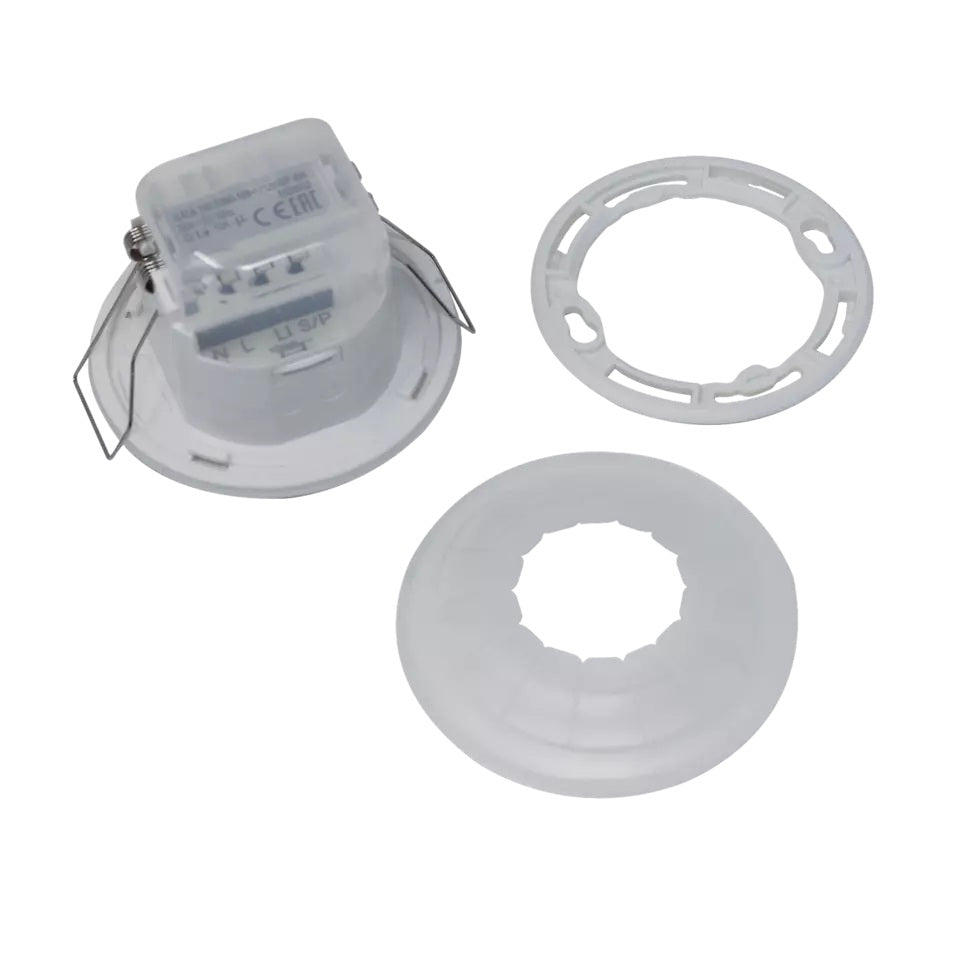

- Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
- 1 channel light (relay 230 V)
- Circular detection area 360°, Ø 12 m (113 m2) at 3 m mounting height
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
- Networking with wall detector theMura Slave possible
- Connection option for push-button for manual switching
- Operation as fully or semi-automatic possible
- One directional brightness measurement (mixed light measurement)
- Teach-in function, pulse function, test function, staircase lighting function
- Ready for operation immediately due to factory presetting

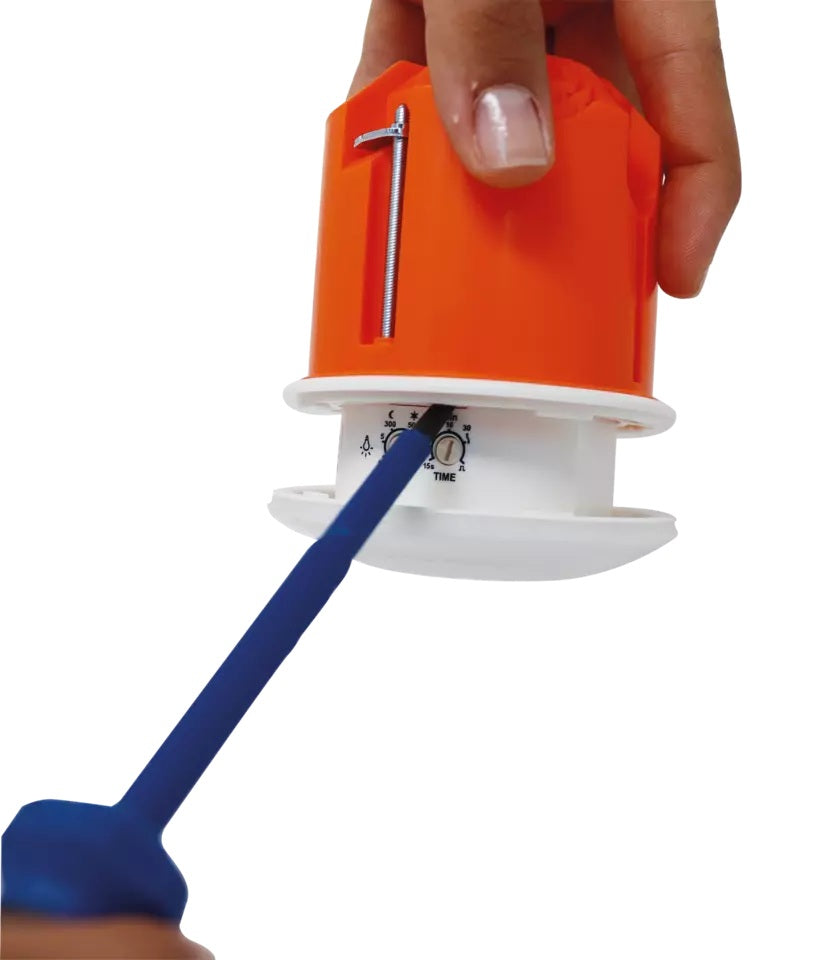

- Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
- App/universal remote control theSenda B
- Service remote control theSenda P
- Optional user remote control for manual override theSenda S/theSenda B
- Restriction of the detection range possible
- Also suitable for outdoor applications, by changing the installation location the detection range is reduced to Ø 8 m
Technical Data:
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Stand-by consumption | ca. 0.5 W |
| Light measurement | Mixed light measurement |
| Colour | White |
| Installation type | Ceiling installation |
| Setting range brightness | 5 lx - 1000 lx |
| Detection angle | 360° |
| Installation height | 2.5 - 3.5 m |
| Switching output | Light |
| Light switch-off delay | 15 s - 30 min |
| Incandescent/halogen lamp load | 2300 W |
| Inrush current | max. 500 A / 200 µs |
| LED lamp 2-8 W | 400 W |
| LED lamp > 8 W | 400 W |
| Lamp types | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Detection range | 113 m² (ø 12 m | 360°) |
| Detection range | Round |
| Remote controlled | |
| Ambient temperature | -25°C ... 55°C |
| Type of protection | IP 54 (when fitted) |
