Steinel Ultrasonic Sensor (US), Dual US
Steinel Ultrasonic Sensor (US), Dual US
SKU SKU:4007841007843COM1
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:

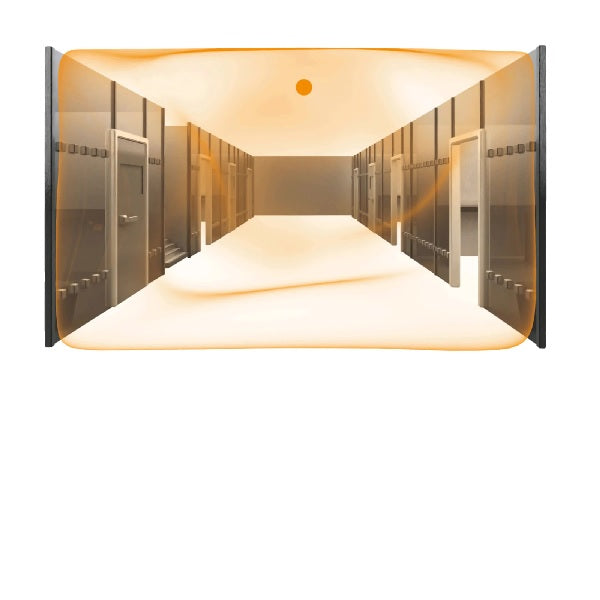

Watches over the entire corridor. And can see around corners.
Dual US ultrasonic motion detector, ideal for corridors and passageways. Reliable detection within 20 m, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, COM1 for switching light ON and OFF. COM2 for switching light ON and OFF and also for operating HVAC.
With 5 Years Manufacturer's Warranty
Technical Specifications:
Type: Ultrasonic
Response Lux: 10 - 1000 lx
Time Setting: 30sec - 30min
Output: 2000W Max
Dimensions (L x W x H): 109 x 120 x 120 mm
Mounting height: 2,50 – 3,50 m
Optimum mounting height: 2,8 m
Detection angle: 360 °
Angle of aperture: 180 °
Reach, radial: 20 x 3 m (60 m²)
Reach, tangential: 20 x 3 m (60 m²)
IP rating: IP20
