STEGO, 13A Light Grey 1 Gang Plug Socket SD035 Indoor, Type G - British
STEGO, 13A Light Grey 1 Gang Plug Socket SD035 Indoor, Type G - British
SKU:03503.0-01
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน

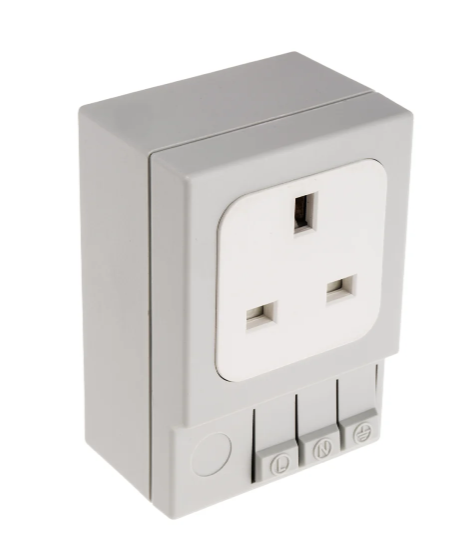

The STEGO SD035 13A 1 Gang Plug Socket is a compact and reliable electrical socket designed for indoor installation in control cabinets, electrical enclosures and industrial applications. Featuring a British Type G socket configuration, it provides convenient 230V power access for auxiliary equipment such as hand lamps, measuring instruments and soldering equipment.

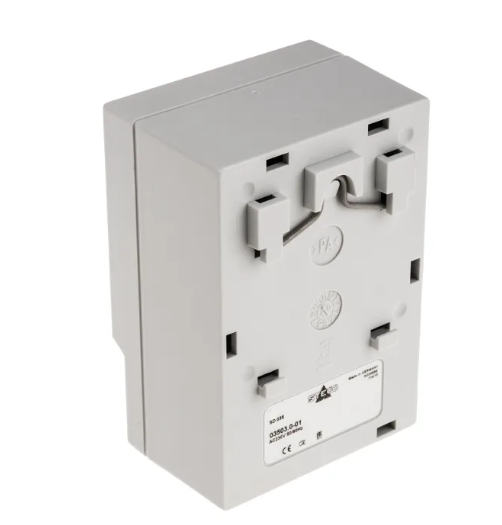

The socket is designed for 35 mm DIN rail mounting, allowing quick and easy installation within electrical enclosures. Its light grey plastic housing, screwless faceplate and matt finish provide a clean, professional appearance, while the pressure-clamp terminals enable secure electrical connections.
Key Features
- Brand: STEGO
- Series: SD035
- Product Type: 1 Gang Plug Socket
- Socket Type: Type G – British
- Rated Current: 13A
- Rated Voltage: 230V AC
- Mounting: 35 mm DIN Rail
- Colour: Light Grey
- Material: Plastic
- Protection Rating: IP20
- Switch: Non-switched
- Terminal Type: Pressure Clamp
- Dimensions: 92 mm (W) × 62 mm (H) × 48 mm (D)
- Minimum Box Depth: 48 mm
- Features: Screwless faceplate, earth terminal, clamp terminal and clip fixing
- Standards/Approvals: EN 60715, UL94 V-0 and UL File No. E222026
