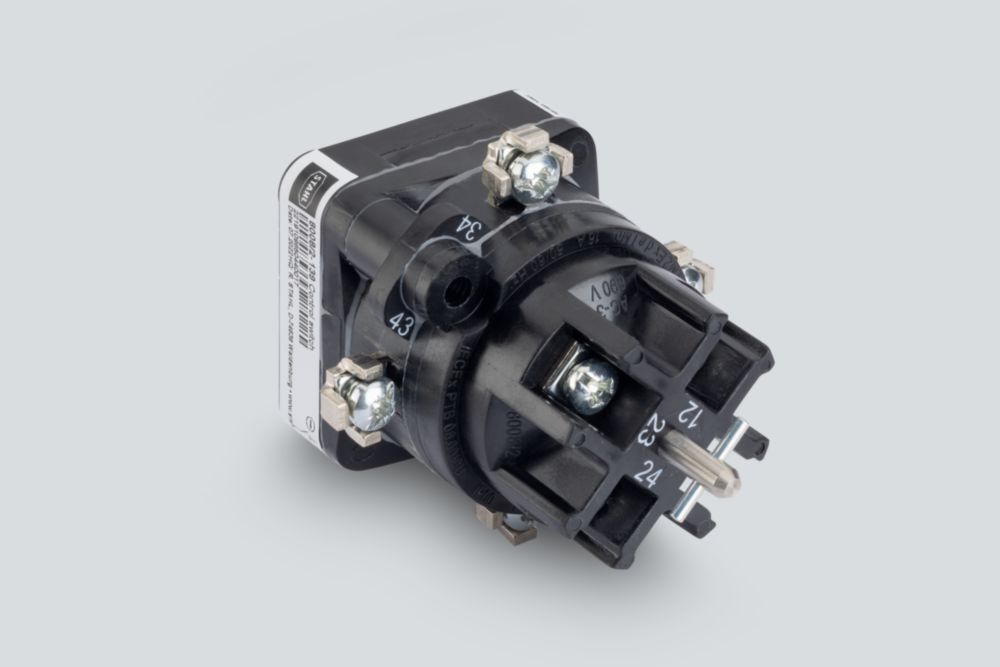

Stahl 8008/2 Position Switch ( 3position )

STAHL 8008/2-027

The R. STAHL 8008/2 Series Position/Control Switch is a robust explosion-protected control switch designed for reliable switching and control applications in hazardous industrial environments. The 8008 series is available with different pole configurations and switching arrangements, including 3-position versions.

Key Features

• Product Series: R. STAHL 8008/2
• Switching Positions: 3-position configuration
• Type: Explosion-protected control switch
• Electrical Rating: Up to 690 V AC and 16 A AC, depending on the exact variant
• Contact Material: Silver-nickel on standard versions
• Pole Configuration: Available in 2-, 3-, or 4-pole configurations depending on the switching arrangement
• Operation: Latching and spring-return switching positions are available
• Safety: Positive-opening NC contacts make suitable variants appropriate for emergency-stop functions in accordance with IEC/EN 60204 and DIN VDE 0113
• Hazardous Area Application: Designed for use in Zone 1 and Zone 2 environments; applicable variants carry ATEX/IECEx certifications.
