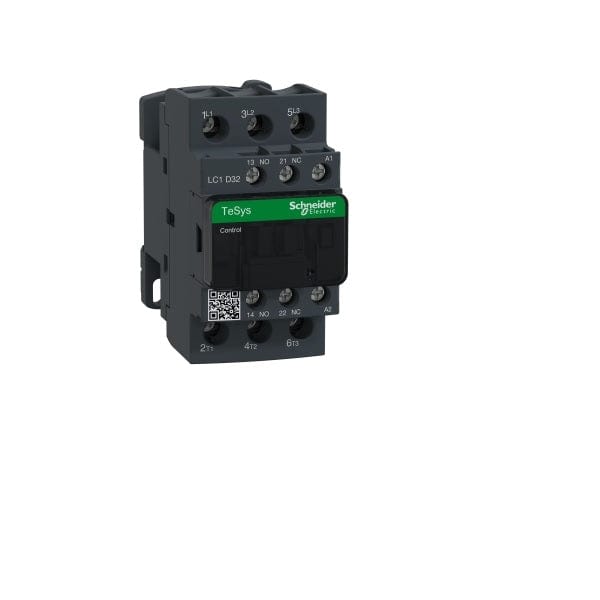

Schneider TeSys Deca, 3P(3 NO), 0 to 440V,32A, 230VAC 50/60Hz coil Contactor
Schneider TeSys Deca, 3P(3 NO), 0 to 440V,32A, 230VAC 50/60Hz coil Contactor
SKU SKU:LC1D32P7
ราคาปกติ
$ 90.00 SGD
ราคาปกติ
$ 98.00 SGD
ราคาโปรโมชัน
$ 90.00 SGD
ราคาต่อหน่วย
/
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load Motor control |
| Utilisation category | AC-3 AC-1 AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 32A/440V AC-3/3e (15kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
* New modern look & feel of all machines
* Designed to meet the requirements of Electro domestic and HVAC applications
* Easier to install and operate with multi-standard screws
* With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
* Digital customer experience for technical documents
* Environmental performance of the product
