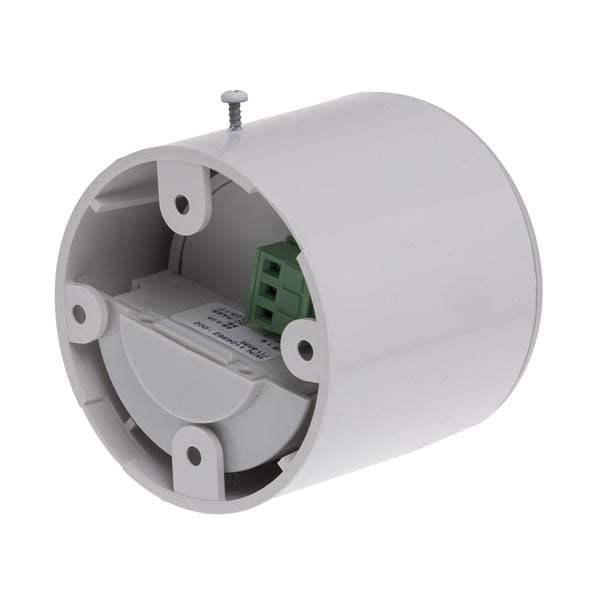

RS PRO Lighting Controller Detector PIR Ceiling Mount
RS PRO Lighting Controller Detector PIR Ceiling Mount
SKU SKU:4240381
มี 32 รายการในสต็อกสินค้า
แบ่งปัน
Technical data sheets
Datasheet
*Check stock before ordering. Lead time 4 working days.*
Product Details
PIR and Daylight Switch
Combined photocell and PIR for automatic control of indoor lighting
Photocell prevents lights being turned on if sufficent daylight
Can be flush or surface mounted with adaptors supplied
Adjustable off time delay and lux level
Suitable for tungsten or fluorescent lighting loads
Occupancy Lighting Controllers
Lighting controllers designed for use within offices and warehouses. Available with dual sensors for detecting ambient light and physical movement. Outputs are in the form of switch contacts (standard types). A dimming control output version is available for use with electronic ballasts. This can control up to 10 ballasts, ideal where daylight compensation is required with constant ambient light.
Specifications
61.2mm
Attribute | Value |
Controller Type | Detector |
Sensor Type | PIR |
Voltage Rating | 220 → 240 V ac |
Mount Type | Ceiling |
Range | 5 → 7 m |
Dimmable | Yes |
Diameter | 76mm |
Time Delay | 10 s → 30 min |
Height | 61.2mm |
65mm
Attribute | Value |
Controller Type | Detector |
Sensor Type | PIR |
Voltage Rating | 230 V ac |
Mount Type | Ceiling |
Range | 7.8 x 2.8 m |
Diameter | 76mm |
Time Delay | 10 s → 99 min |
Height | 65mm |
