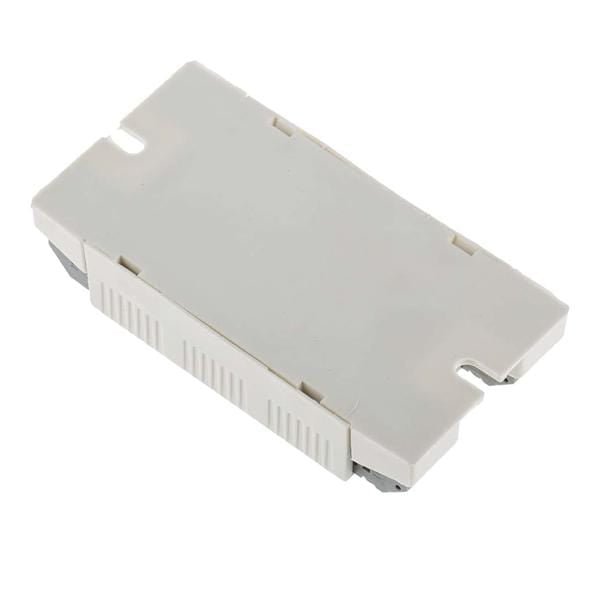

RS PRO Electronic Compact Fluorescent Lighting Ballast x4Pcs
RS PRO Electronic Compact Fluorescent Lighting Ballast x4Pcs
SKU SKU:7210853T8
มี 34 รายการในสต็อกสินค้า
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical data sheets
*Check stock before ordering. Lead time 4 working days*
Product Details
Compact Matchbox Electronic Ballasts
Multi-lamp and multi-power matchbox electronic ballasts for controlling fluorescent lamps.
Compact size ballast to be integrated
Can be used for lighting equipment in protection Class I and II
Suitable for connection to emergency equipment in compliance with EN 60598-2-22
Start with pre-heating to increase the life of the lamp
Protection: in case of disconnection of the lamp (re-start with pre-heating), lamp failure or end of life
Ballast can be secured with slots for screws
Rapid coupling input and output terminals
Range of application 198...254 V
RoHS compliant
Standards
EN 61000-3-2, EN 61547, EN 55015, EN 61347-2-3, EN 60598-2-22.
Specifications
| Attribute | Value |
| Wattage | 1 x 14 → 18 W, 1 x 18 → 24 W, 1 x 22 W, 1 x 24 W |
| Ballast Type | Electronic |
| Supported Lamp Shape | T5, T8, TC-F, TC-L, T-R5 |
| Supported Lamp Type | Compact Fluorescent, Fluorescent |
| Voltage Rating | 220 → 240 V |
| Dimmable | No |
| High Frequency | Yes |
| Length | 80 mm |
| Width | 41 mm |
| Height | 18mm |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +55°C |
| EU Energy Efficiency Rating | A2 |
