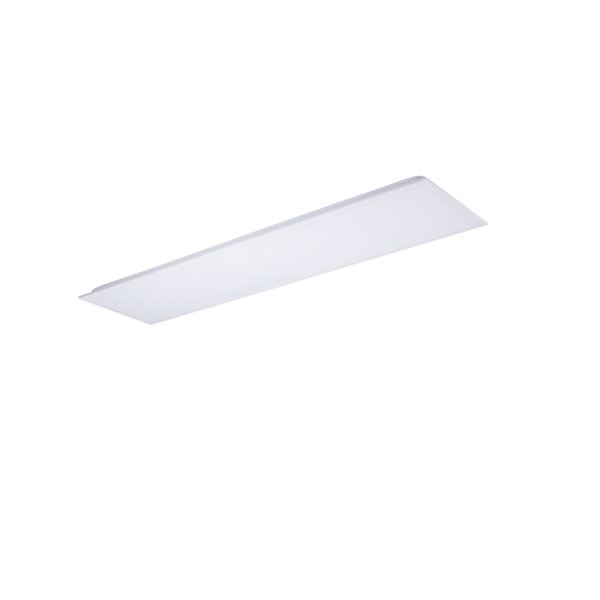

PHILIPS RC048B LED32S 36W PSU NOC GM Smartbright Direct G2 Panel Light
PHILIPS RC048B LED32S 36W PSU NOC GM Smartbright Direct G2 Panel Light
SKU:911401807880
ราคาปกติ
$ 77.00 SGD
ราคาปกติ
$ 84.00 SGD
ราคาโปรโมชัน
$ 77.00 SGD
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ปริมาณ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical Details
General Information
| Beam angle of light source |
120 °
|
| Light source color |
White
|
| Light source replaceable |
No
|
| Number of gear units |
1 unit
|
| Driver/power unit/transformer |
Power supply unit
|
| Driver included |
Yes
|
| Optical cover/lens type |
Polystyrene bowl/cover prismatic
|
| Luminaire light beam spread |
120°
|
| Control interface |
-
|
| Connection |
Connection unit 2-pole
|
| Cable |
Cable 0.3 m without plug
|
| Protection class IEC |
Safety class II
|
| Glow-wire test |
Temperature 650 °C, duration 30 s
|
| Flammability mark |
-
|
| CE mark |
CE mark
|
| ENEC mark |
-
|
| Warranty period |
3 years
|
| Constant light output |
No
|
| Number of products on MCB of 16 A type B |
36
|
| EU RoHS compliant |
No
|
| Light source engine type |
LED
|
| Input Voltage |
230 to 240 V
|
| Input Frequency |
50 or 60 Hz
|
| Inrush current |
15 A
|
| Inrush time |
0.04 ms
|
| Power Factor (Min) |
0.9
|
| Dimmable |
No
|
| Housing Material |
Steel
|
| Reflector material |
Acrylate
|
| Optic material |
Polystyrene
|
| Optical cover/lens material |
Polystyrene
|
| Fixation material |
-
|
| Optical cover/lens finish |
Opal
|
| Overall length |
595 mm
|
| Overall width |
595 mm
|
| Overall height |
34 mm
|
| Color |
White
|
| Ingress protection code |
IP20 [ Finger-protected]
|
| Mech. impact protection code |
IK02 [ 0.2 J standard]
|
| Initial luminous flux (system flux) |
3200 lm
|
| Luminous flux tolerance |
+/-10%
|
| Initial LED luminaire efficacy |
88 lm/W
|
| Init. Corr. Color Temperature |
4000 K/6500K
|
| Init. Color Rendering Index |
>80
|
| Initial chromaticity |
0.382;0.38
|
| Initial input power |
36 W
|
| Power consumption tolerance |
+/-10%
|
| Median useful life L70B50 |
36000 h
|
| Median useful life L80B50 |
22000 h
|
| Median useful life L90B50 |
10000 h
|
| Ambient temperature range |
-10 to +40 °C
|
| Maximum dim level |
Not applicable
|
