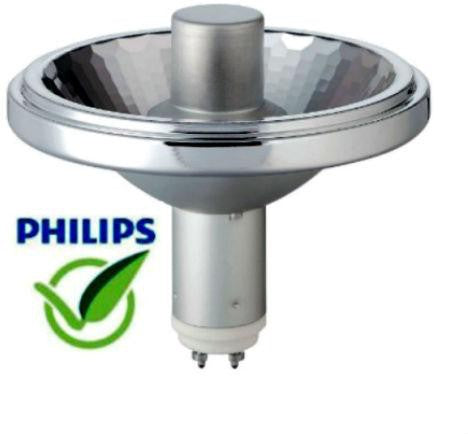

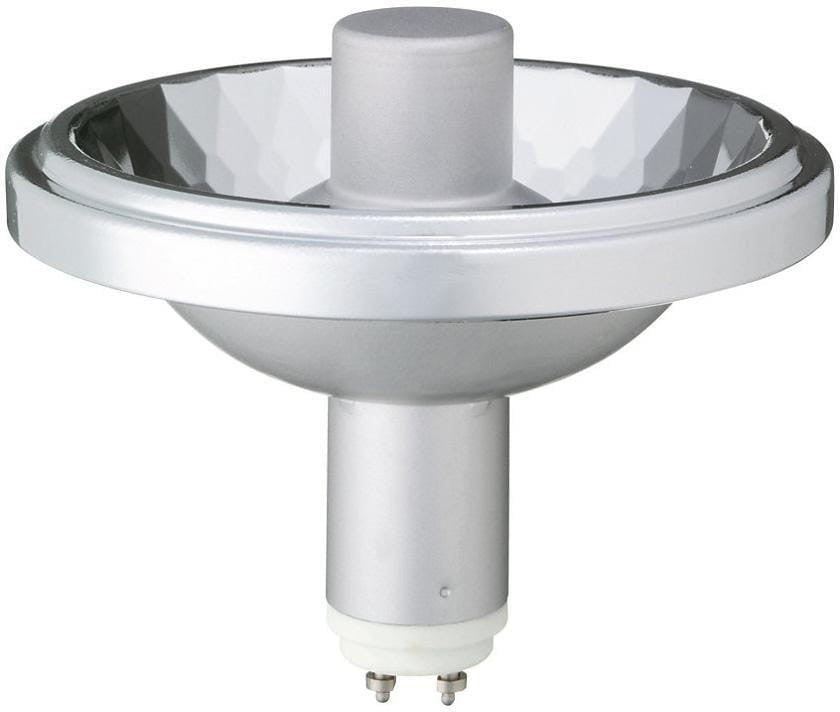

PHILIPS MASTERC CDM-R 111 ELITE GX8.5
PHILIPS MASTERC CDM-R 111 ELITE GX8.5
SKU SKU:928195305330
ราคาปกติ
$ 50.00 SGD
ราคาปกติ
$ 54.00 SGD
ราคาโปรโมชัน
$ 50.00 SGD
ราคาต่อหน่วย
/
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
สต็อกสินค้าเหลือน้อย: เหลือ 1 ชิ้น
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
General Information
Light Technical
Operating and Electrical
Controls and Dimming
Mechanical and Housing
Approval and Application
| Cap-Base |
GX8.5 [ GX8.5]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Life to 5% Failures (Nom) |
8000 h
|
| Life to 10% Failures (Nom) |
5500 h
|
| Life to 20% Failures (Nom) |
10500 h
|
| Life to 50% Failures (Nom) |
12000 h
|
| ANSI Code HID |
C130/O
|
| Switching Cycle |
1050X
|
| Color Code |
930 [ CCT of 3000K]
|
| Beam Angle (Nom) |
10 ° / 24 D / 40 D
|
| Beam Angle Technical (Nom) |
9 °
|
| Beam Angle Technical (Max) |
11 °
|
| Beam Angle Technical (Min) |
7 °
|
| Luminous Intensity (Min) |
27000 cd / 6500 cd / 3500 cd / 34000 cd / 12000 cd
|
| Luminous Intensity (Nom) |
36000 cd / 8500 cd / 4500 cd / 45000 cd / 16000 cd
|
| Beam Description |
Spot
|
| Color Designation |
Warm White (WW)
|
| Lumen Maintenance 12000 h (Nom) |
70 %
|
| Lumen Maintenance 2000 h (Nom) |
90 %
|
| Lumen Maintenance 4000 h (Nom) |
85 %
|
| Design Mean Lumens |
1200 lm
|
| Chromaticity Coordinate X (Nom) |
0.432
|
| Chromaticity Coordinate Y (Nom) |
0.392
|
| Correlated Color Temperature (Nom) |
3000 K
|
| Luminous Efficacy (rated) (Nom) |
37 lm/W
|
| Color Rendering Index (Min) |
87
|
| Color Rendering Index (Nom) |
90
|
| LLMF At End Of Nominal Lifetime (Nom) |
70 %
|
| Luminous Flux in 90° Cone (Rated) |
1350 lm
|
| Power (Rated) (Nom) |
35 W / 70 W
|
| Lamp Current (EM) (Nom) |
0.440 A
|
| Re-Ignition Time (Min) (Max) |
15 min
|
| Warm Up Time to 60% Light (Nom) |
120 s
|
| Ignition Time (Max) |
30 s
|
| Voltage (Max) |
97 V
|
| Voltage (Min) |
81 V
|
| Voltage (Nom) |
89 V
|
| Dimmable |
No
|
| Run-Up Time 90% (Max) |
3 min
|
| Bulb Finish |
Reflector
|
| Energy Efficiency Label (EEL) |
B
|
| Mercury (Hg) Content (Nom) |
4.7 mg
|
| Energy Consumption kWh/1000 h |
43 kWh
|
