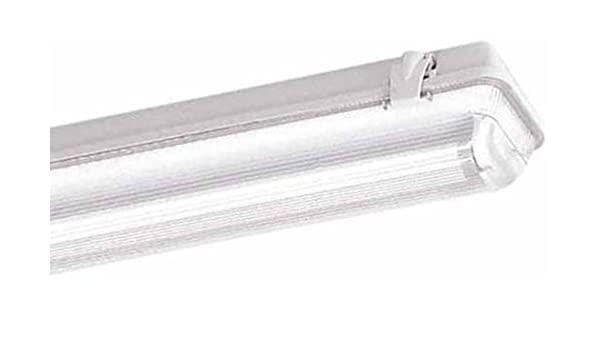

Osram Neptune Poly T5 Weatherproof Fixture
Osram Neptune Poly T5 Weatherproof Fixture
SKU:44008321540102
หมดสต็อก
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical Details
For the 1x28W datasheet click here.
For the 2x28W datasheet click here.
With gear and tube
Features:
- A damp and dusty environment with normal corrosion levels
- Difficult application conditions with humidity or dust
- Functional lighting in wet or damp and dusty rooms
- Ideal for industrial and storage facilities
- Car parks and underpasses
- Jet-proof luminaires
- Connection with 3-pin screw terminal
- Polycarbonate casing with a polyurethane seal
- Ceiling mounting with clips
- Impact resistance: IK08
- Sealing for protection against dust
- Type of protection: IP65
- Easy to install and use
- A damp and dusty environment with normal corrosion levels
- Difficult application conditions with humidity or dust
- Functional lighting in wet or damp and dusty rooms
- Ideal for industrial and storage facilities
- Indoor or outdoor (only roofed areas)
- Car parks and underpasses
- Ceiling surface-mounting and suspended mounting
- Not suitable for harsh environments
- Suitable for LUMILUX T8 fluorescent lamps
- Integrated electronic control gear QT-FIT8 (EEI: A2)
Technical Data
Country specific categorizations
Order reference
NEP POLY GR 2X2
Electrical data
Operating mode
ECG
Lamp wattage
28 W
Nominal voltage
220…230 V
Supply voltage
220…230 V
Mains frequency
50…60 Hz
Light technical data
Beam angle
wide distribution °
Light distribution
symmetric
Dimensions & weight
Length
1210 mm
Width
100.0 mm
Height
90.0 mm
Product weight
1.9 kg
Colors & materials
Body material
PC
Product color
grey
Cover material
PC
Temperatures & operating conditions
Ambient temperature range
0…+25 °C
Additional product data
Number of lighting outlets
2
Type of cover
enclosure
Capabilities
Type of installation
surface-mounted
Type of connection
terminal, 3-pole, max. 2.5mm²
Holder designation
G5
Certificates & standards
Protection class
insulation class I (protective earthing)
Type of protection
IP65
Protection against ignition and fire
F
Protection class IK (shock resistance)
IK10
