P5K6

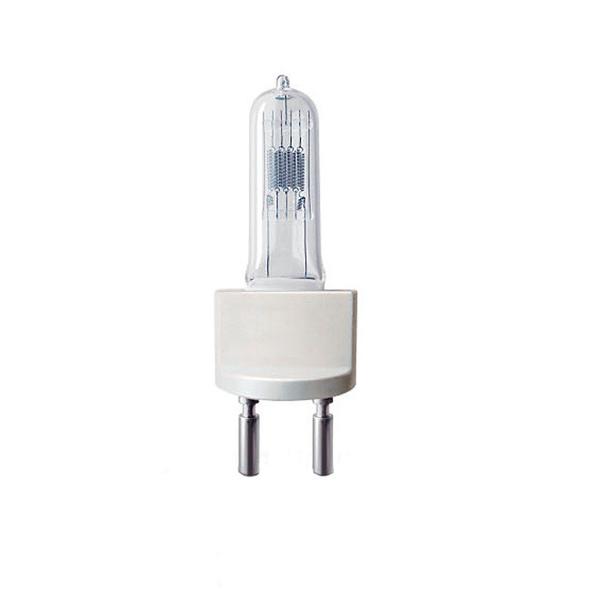

OSRAM 64747 240V 1000W Single Ended Halogen Lamp
OSRAM 64747 240V 1000W Single Ended Halogen Lamp
SKU SKU:4008321468741
ราคาปกติ
$ 58.00 SGD
ราคาปกติ
$ 62.00 SGD
ราคาโปรโมชัน
$ 58.00 SGD
ราคาต่อหน่วย
/
ต่อ
แบ่งปัน
Technical Details
Product family features
- Operation at mains voltage: 120 V | 230 V | 240 V
- Color temperature: 3,000 K (with longer lifespan)
- Color temperature: 3,200 K (for professional film and TV work)
Areas of application
- Professional film and TV work
- Theater and concert stages
- Entertainment
Safety advice
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (protective shields, grids, etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. There must also be a warning sign to indicate that the lamps give off high levels of heat. Detailed information is available on request.
Technical Data
Country specific categorizations
Order reference
64747
ANSI code
FKJ
LIF
CP/71
Electrical data
Nominal wattage
1000.00 W
Nominal voltage
240 V
Mains or non-mains
MLS
Claim of equivalent power
No
Networked standby power
0
Energy consumption in on-mode
1045
Standby power
0
On-mode power Pon
1045.0
Photometrical data
Color temperature
3200 K
Φuse value refers to luminous flux ..
in a sphere (360°)
Correlated color temperature CCT
3127
Useful luminous flux
24685
Color rendering index Ra
100
Chromaticity coordinate x
0.422
Chromaticity coordinate y
0.422
Light technical data
Non-directional or directional
NDLS
High luminance light source
No
Dimensions & weight
Diameter
26.0 mm
Length
140.0 mm
Light center length (LCL)
63.5 mm
Illuminated field
13.0*15.0 mm²
Filament diameter
15.0 mm
Height [PIM]
140
Width [PIM]
25
Length [PIM]
25
Lifespan
Lifespan
200 h
Additional product data
Base (standard designation)
G22
Replacement prod. for a fluorescent lamp
No
Lighting technology used
HL
Envelope
No
Anti-glare shield
No
Capabilities
Dimmable
Yes
Burning position
s90
Colour-tuneable light source
No
Connected light source
No
Certificates & standards
EEI – Energy Label
B
Energy efficiency class
G
Logistical data
EAN 10 of contained light source
4008321468741
