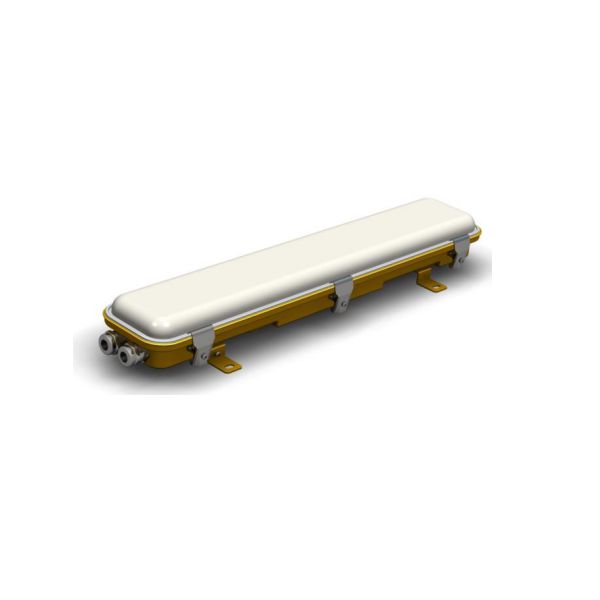

NIBBE EPTL08 Series Stainless Steel LED Explosion-Proof Lamp
NIBBE EPTL08 Series Stainless Steel LED Explosion-Proof Lamp
SKU:EPTL0820W30K
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical Details:
*Ships from China. Check stock before ordering*
Lead time 4 weeks
APPLICATION SCOPE
Applicable to Low-profile explosive environment ；
Applicable to Zones 1 and 2 of explosive gas environment and Zone 21 and
Zone 22 of explosive dust environment ;
Applicable to IIA, IIB, IIC explosive gas environment and IIIA, IIIB, IIIC
explosive dust environment. MAIN FEATURES
Built-in patented Ex MODULE and patented Ex LED DRIVER ;
With surface fixed installation, column installation and other installation
methods ;
Humanized design, convenient installation, light structure ;
Stainless steel tensile shell, surface sandblasting, electrostatic spraying, good durability;
Anti UV PC lampshade, uniform light, low glare ;
0 ~ 10V dimming function for customers to choose ;
Long-life L70 ≥ 50000h (+ 60 ℃) ;
TECHNICAL PARAMETERS
Product name EPTL08 series LED explosion-proof lamp
Power 20W/30W/40W : 40W/50W/60W
Luminous flux 2200lm/3300lm/4400lm : 4400lm/5500lm/6600lm
Efficiency ≥110 lm/W
Voltage AC100-277V/DC24-48V, 50/60 Hz
PF ＞0.9
CCT 3000K/4000K/5000K/5700K/6500K±200K
Ra ≥80
Corrosion-proof WF2
Protection level IP66
the texture of material 304/316L stainless steel shell + PC lampshade
Product size 680×142×90mm : 1285×142×90mm
Net weight 2.5KG : 4.5KG
Package size 745×198×132mm: 1320×198×132mm
Gross weight 2.95KG: 5.05KG
Ex-Mark Ex e MB ⅡC T5 Gb / Ex tD A21 IP66 T95℃
Temperature -35~+60 ℃
