MENNEKES #14625 32A/3P/230V/6H IP67/IP69 CONNECTOR
MENNEKES #14625 32A/3P/230V/6H IP67/IP69 CONNECTOR
SKU:14625
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน

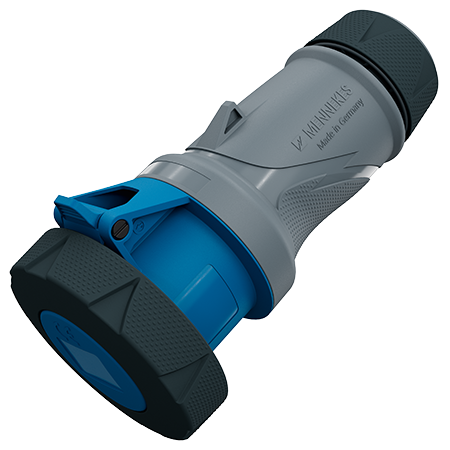

MENNEKES 14625 Power TOP Xtra is a heavy-duty 32A, 3-pole, 230V industrial cable connector designed for reliable electrical power connections in demanding industrial and outdoor environments. It features a 6-hour clock position and IP67/IP69 protection, providing excellent resistance to dust, temporary immersion, and high-pressure cleaning.
The connector uses MENNEKES Ergo CONTACT screw connection technology with X-CONTACT, an ergonomic housing with textured grip areas, a rubberised bayonet ring, and a sealed cable gland. Integrated strain relief and kink protection help ensure a secure and durable cable connection.
Key Specifications
- Manufacturer: MENNEKES
- Part Number: 14625
- Series: Power TOP Xtra
- Product Type: Industrial cable connector / CEE connector
- Rated Current: 32 A
- Poles: 3P
- Rated Voltage: 230 V AC
- Frequency: 50–60 Hz
- Clock Position: 6 h
- Protection Rating: IP67 / IP69
- Connection: Screw terminals – ErgoCONTACT
- Contact System: X-CONTACT
- Cable Cross-Section: 2.5–6 mm²
- Pilot Contact: None
- Cable Gland: Rubberised with sealing
- Features: Strain relief, kink protection, thread lock and safety slide
- Typical Application: Industrial machinery, construction sites, workshops, temporary power distribution, and other harsh-environment electrical installations
