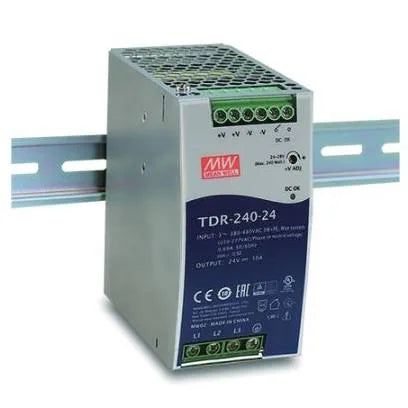

MEANWELL TDR-240-24 - 240W 24V 10A ACTIVE PFC 3 PHASE INPUT 340V~550V DIN RAIL

The MEAN WELL TDR-240-24 is a compact, industrial-grade 240W DIN rail power supply designed for reliable operation in automation, control panels, and industrial power distribution systems. It accepts a wide three-phase input voltage range of 340–550V AC (or 480–780V DC) and delivers a stable 24V DC output at 10A. With high efficiency up to 92%, a slim 63 mm-wide metal housing, and DIN rail mounting, it maximizes panel space while ensuring excellent heat dissipation. The unit includes built-in Power Factor Correction (PFC), overload, overvoltage, and overtemperature protection, as well as a DC OK relay contact for remote system monitoring, making it ideal for demanding industrial environments.

Key Features:

• 240W industrial DIN rail power supply
• Output: 24V DC, 10A
• Wide three-phase 340–550V AC input (also supports 480–780V DC input)
• Built-in Power Factor Correction (PFC)
• High efficiency of up to 92%
• Slim 63 mm width for space-saving panel installation
• Adjustable output voltage: 24–28V DC
• Integrated overload, overvoltage, and overtemperature protection
• DC OK relay contact for remote status monitoring
• Operating temperature: -30°C to +70°C with natural air convection
• Suitable for TS-35/7.5 and TS-35/15 DIN rail mounting
• Ideal for industrial automation, PLC systems, control cabinets, machinery, and process control applications.
