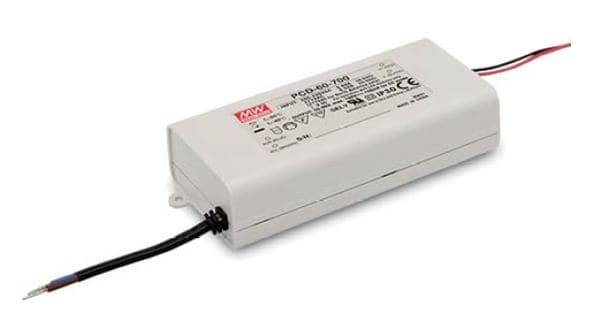

MEANWELL PCD Series Constant Current Power Supply

Technical Details

Datasheet for PCD-16W

Datasheet for PCD-25W

Datasheet for PCD-40W

Datasheet for PCD-60W

Features :

• AC phase-cut dimming
• Work with leading edge and trailing edge TRIAC dimmers
• 115VAC or 230VAC models available
• Built-in active PFC function
• Constant current design
• Protections: Short circuit / Over temperature
• Cooling by free air convection
• Fully isolated plastic case
• IP42 design
• Class Ⅱ power unit, no FG
• Class 2 power unit
• Suitable for LED related fixture or appliance(such as LED Decoration or Advertisement devices}
• 100% full load burn-in test
• Low cost
• High reliability

PCD-16-350 [A]    A : With AC input 90~ 135VAC.

                            B : With AC input 180~ 295VAC
