[Clearance] JUNG 240-10 ROTARY LV 1-10VDC DIMMER SWITCH

For datasheet click here.

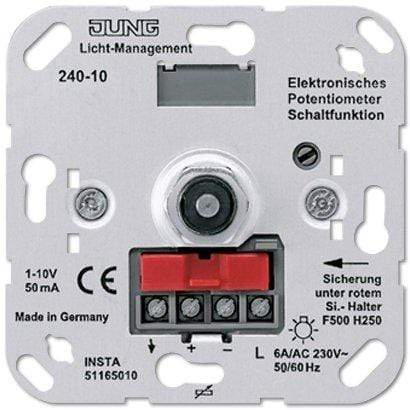

 Reference number: 240-10

Electronic potentiometer, 1 – 10 V

for dimming of fluorescent lamps controlled by electronic ballasts or electronic transformers with control voltage 1 – 10 V

switching capacity of mains switch:

AC 230 V ~ 50/60 Hz, max. 6 A for resistive loads

Intended use

- Switching and brightness adjustment for lamps with operating devices with 1-10 V interface - Installation in appliance box according to DIN 49073

Product characteristics:

- Potentiometer with switching function for direct switching of ohmic or inductive loads - Potentiometer with push

-button function only in connection with pulse relays

- Basic brightness adjustable

- For potentiometers with a push-button function, switching via extensions is possible - Protection of the 1-10 V interface in case of incorrect connection by means of integrated fine-wire fuse

Approvals:

VDE Centre plates: AS / A ranges: ref.-no. A 1540 ..

CD range: ref.-no. CD 1540 ..

SL range: ref.-no. SL 1540 ..

LS range: ref.-no. LS 1940 .., .. 1940 ..

Version: with switch function

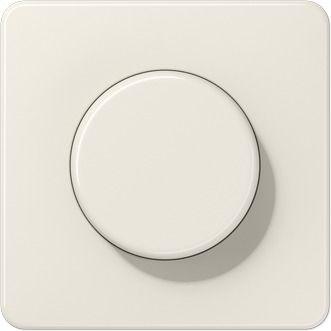

Reference number : CD 1540

Centre plate with knob for rotary dimmer inserts ref.-no.: 1730 DD, 1731 DD, 211 GDE

for satellite dimmer insert ref.-no.: 1733 DNE

for electronic potentiometer 1–10 V ref.-no.: 240-10, 240-31

for DALI potentiometer insert ref.-no.: 240 DPE, 240 PDPE, 240 PDPE TW

The new covers .. 1540 .. and .. 1940 .. replace the old covers .. 540 .., .. 940 .. and .. 2940 .. Duroplastic (scratch-proof) glossy

Colour: ivory

Material: duroplastic
