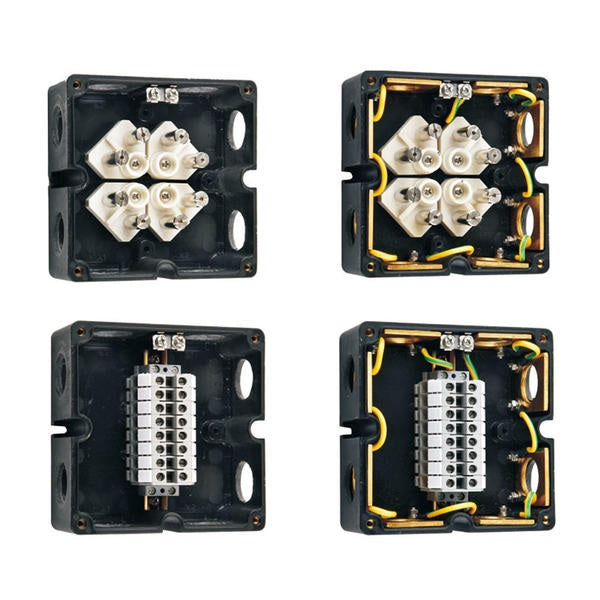

JUNCTION BOX -CZ 0520/4Way (M20Entry hole )
JUNCTION BOX -CZ 0520/4Way (M20Entry hole )
SKU SKU:CZ05204WM20EHWO
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Prodcuts Features:
● Cable entries threads have M20, M25, M32. Unused holes shall be plugged with stopping plugs.
● Different cable glands are on request.
● The enclosure has practical design to get the cables from each side to be connected to terminals.
● Degree of protection IP66.
● IECEx International certification and ATEX European Approval.
Product Parameter
|
Product type: |
Full plastic explosion-proof terminal boxes |
|
Certification: |
CCC IECEX ATEX |
|
Application range (zones): |
1G/Ga/zone 0；2G/Gb/zone 1；2D/Db/zone 21 |
|
Min.ambient temperature: |
-55℃ |
|
Max.ambient temperature: |
+55℃ |
|
Degree of protection: |
IP66 |
|
Rated voltage: |
Max AC 690V |
|
Type of terminal: |
Pillar type terminal ( 0.5 ～ 6mm² ) max 6mm²/32A |
|
Earthing terminal: |
2×4mm² |
|
Material of enclosure: |
GRP (anti-static glass fibre reinforced polyester SMC) |
| Certification： |
China: CNEx18.5913X Ex mark: Ex eⅡC T6/T5 Gb Ex tD A21 IP66 T80℃/T95℃
Ex ia/ibⅡC T6 Ga/Gb Ex iaD 20 T80℃ Ex ibD 21 T80℃ IECEx: IECEx CNEX 18.0029X Ex mark: Ex ia ⅡC T6/T5 Ga Ex ib ⅡC T6/T5 Gb Ex eb ⅡC T6/T5 Gb Ex tb ⅢC T80℃/T95℃ Db
ATEX: (DNV) Presafe 17 ATEX 11537X Ex mark: Ⅱ1G Ex ia ⅡC T6/T5 Ga Ⅱ2G Ex ib ⅡC T6/T5 Gb Ⅱ2G Ex eb ⅡC T6/T5 Gb Ⅱ2D Ex tb ⅢC T80℃/T95℃ Db |
| Intended use: | Can be used in zone 0,zone 1 and zone 2 Can be used in zone 21 and zone 22 |
| Ambient temperature: | -55℃/-40℃/-20℃≤Ta≤+40℃/+55℃ ( For low temperature, it is subject to the ambient temperature of cable gland to be used. ) |
| Degree of protection: | IP66 |
| Rated voltage: | Max AC 690V |
| Type of terminal: | Pillar type terminal ( 0.5 ～ 6mm² ) max 6mm²/32A cage type terminal, miniature terminal,common terminal ( 1.5mm²～6mm² ) |
| Earthing terminal： | 2×4mm² |
| Material of enclosure: | GRP (anti-static glass fibre reinforced polyester SMC) |
| Enclosure weight： | CZ0520/□-210：0.367kg CZ0520/□-310：0.565kg |
