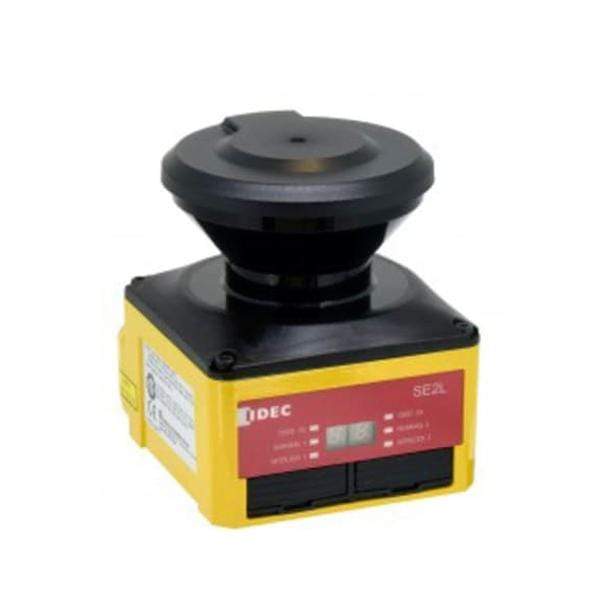

Idec SE2L-H05LP 50W safety laser scanner
Idec SE2L-H05LP 50W safety laser scanner
SKU SKU:1824230
หมดสต็อก
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical data sheets
*Check stock before ordering. Lead time 4 working days*
Product Details
IDEC SE2L safety laser scanner is the smallest in the world but out performing many competitions. Features include 270 degree sensing angle, 5m safety protection zone, 20m warning zone, and customizable protection patterns.Configurable using Master and Slave configuration. Up to four SE2L can be connected together which is ideal for detection of four sides on AGVs.With dual protection mode, SE2L can be programmed to safeguard two different zones for two robots at once. Reduce the number of laser scanners and light curtains by half Protection zone1 half.
Protection zone (safety): 5m
Warning zone (non-safety): 20m
270 degree sensing angle
Master and slave function
Maximum 32 patterns
Customizable protection patterns
EDM functions
MicroSD slot
Specifications
| Attribute | Value |
| Voltage Rating | 24 V dc |
| Length | 80 mm |
| Width | 80 mm |
| Depth | 95 mm |
| Dimensions | 80 x 80 x 95 mm |
| Wattage | 50 W |
| Model | SE2L-H05LP |
| Series | SE2L |
