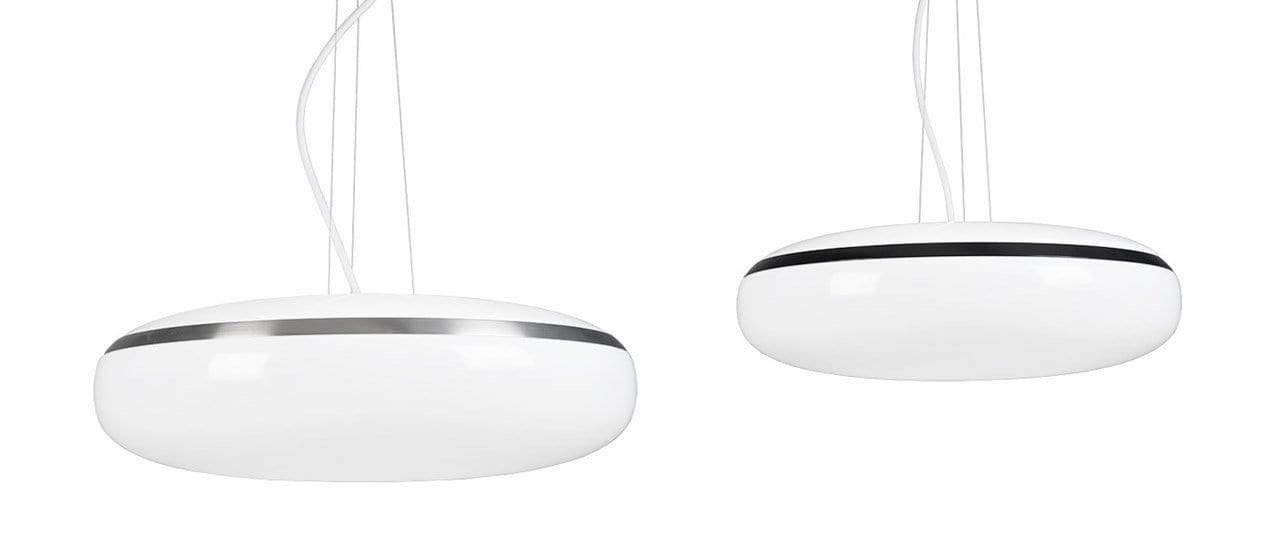

FAGERHULT TIBI round beam decorative Pendant Light
FAGERHULT TIBI round beam decorative Pendant Light
SKU SKU:54777-402
สต็อกสินค้าเหลือน้อย: เหลือ 2 ชิ้น
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Features:
TIBI
A round beam decorative luminaire in three sizes for entrances
and stairwells, for example. Also available with Tunable White for
dynamic lighting.
Installation Two-point suspension, c/c 55–78 mm.
Connection Snap-in terminal block 5x2.5 mm², 1-phase through-wiring
possible. Wire length 2.5 m and a 2.5 m white fabric cord. Surface mounted
cable possible. Height adjustment is done on the luminaire via a friction
lock.
Design Diffuser in specular opal acrylic. Luminaire body and decorative
edge ring in aluminium. Decorative edge ring enameled in glossy black (RAL
9005) or clear enamelled brushed aluminium. Colour-coordinated ceiling
cup.
Dimming DALI
Miscellaneous A cut-out in the ceiling cup is made using cutters 94248 for
a surface mounted mains cable.
| Tibi Pendant |
| DALI/Phase-pulse, Opal |
| DESIGN |
| Colour Black |
| RAL 9005 |
| Diffuser Opal |
| Weight, kg 9.0 |
| Diameter, 800mm / 600mm / 400mm |
| TECHNICAL DATA |
| Protection class 1 |
| IP rating 20 |
| Light control DALI/Phase-pulse |
| ELECTRICAL DATA |
| Effect, W 59 |
| LIGHTING DATA |
| Lumen output 6990 |
| lm/W 119 |
| Lumen maintenance L90 B50, h 60 000 |
| Lumen maintenance at 50 000 h 0,9 |
| LED driver, h/max failure 100 000/10 % |
| SDCM 4 |
| CRI 80 |
| CCT, K 4000 |
| Light source LED |
Warranty 18 Months
