Euchips DLP 1H Series 24V Non-Dimmable LED Constant Voltage Driver
Euchips DLP 1H Series 24V Non-Dimmable LED Constant Voltage Driver
SKU SKU:107201040101
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:

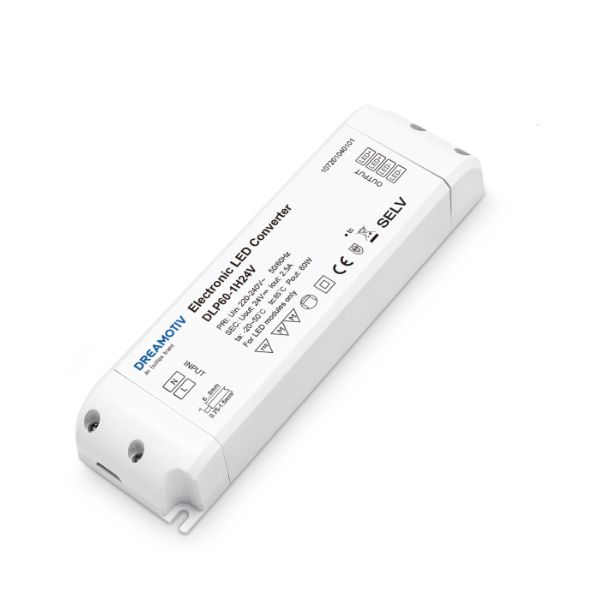

60W 24V Non-Dimmable LED Constant Voltage Driver - DLP60-1H24VProduct Details
Features
● Single-channel constant voltage output
● Suitable for LED indoor lamps
● Small size, high efficiency, high reliability, long life;
● Works normally at -20℃~+50℃;
● Protection types: overload, overvoltage, short-circuit self-recovery protection;
● The typical efficiency of the whole machine is as high as 86%;
● Complies with CE certification and RoHS environmental protection standards;
● 100% full load aging test;
technical parameter
|
model |
DLP60-1H24V
|
|
|
output |
aisle |
1 |
|
Voltage |
24VDC |
|
|
current |
2.5A |
|
|
power |
60W |
|
|
Voltage accuracy |
±5% |
|
|
ripple |
300mVp-p |
|
|
enter |
Voltage |
220VAC-240VAC |
|
current |
0.3Amax@230VAC |
|
|
efficiency |
87%@230VAC, full load |
|
|
frequency |
50/60Hz |
|
|
power factor |
>0.98 |
|
|
Inrush current |
Cold start 60A@220VAC, full load |
|
|
Protect
|
short circuit |
Automatic recovery |
|
overvoltage |
Automatic recovery |
|
|
overcurrent |
Automatic recovery |
|
|
over temperature |
Automatic recovery |
|
|
other |
size |
180*52*30mm (length*width*height) |
|
weight |
290g |
|
|
Operating temperature |
- 20~50℃ |
|
|
Relative humidity |
20~90% RH |
|

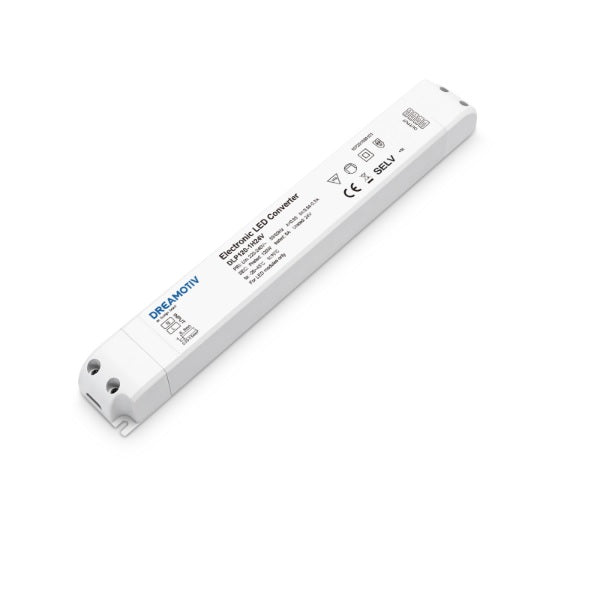

120W 24V Non-Dimmable LED Constant Voltage Driver - DLP120-1H24VProduct Details
Features
● Single-channel constant voltage output
● Suitable for LED indoor lamps
● Small size, high efficiency, high reliability, long life;
● Works normally at -20℃~+50℃;
● Protection types: overload, overvoltage, short-circuit self-recovery protection;
● The typical efficiency of the whole machine is as high as 86%;
● Complies with CE certification and RoHS environmental protection standards;
● 100% full load aging test;
technical parameter
|
model |
DLP120-1H24V |
|
|
output |
aisle |
1 |
|
Voltage |
24VDC |
|
|
current |
5A |
|
|
power |
120W |
|
|
Voltage accuracy |
±5% |
|
|
ripple |
300mVp-p |
|
|
enter |
Voltage |
220VAC-240VAC |
|
current |
0.6Amax@230VAC |
|
|
efficiency |
88%@230VAC, full load |
|
|
frequency |
50/60Hz |
|
|
power factor |
>0.98 |
|
|
Inrush current |
Cold start 60A@220VAC, full load |
|
|
Protect
|
short circuit |
Automatic recovery |
|
overvoltage |
Automatic recovery |
|
|
overcurrent |
Automatic recovery |
|
|
over temperature |
Automatic recovery |
|
|
other |
size |
300*40*30mm (length*width*height) |
|
weight |
455g |
|
|
Operating temperature |
- 20~50℃ |
|
|
Relative humidity |
20~90% RH |
|
Precautions
1. This product should be debugged and installed by qualified personnel.
2. This product is not waterproof and needs to be protected from the sun and rain. If it is installed outdoors, please use a waterproof box.
3. Good heat dissipation conditions will prolong the service life of the product. Please install the product in a well-ventilated environment.
4. Please check whether the output voltage and current of the LED power supply used meets the product requirements.
5. The diameter of the wire used must be enough to load the connected LED lamps, and ensure that the wiring is firm to prevent the wire from overheating or poor contact triggering an accident.
6. Before power-on debugging, make sure that all wiring is correct to avoid damage to the lamps due to wiring errors.
7. If there is a fault, please do not repair it yourself; if you have any questions, please contact the supplier.
