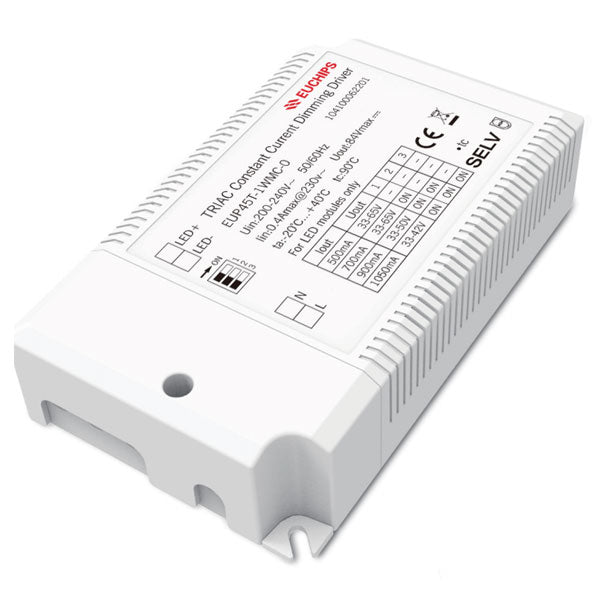

Euchips 45W 500/700/900/1050mA*1ch Constant Current LED Driver EUP45T-1WMC-0
Euchips 45W 500/700/900/1050mA*1ch Constant Current LED Driver EUP45T-1WMC-0
SKU SKU:104100062201
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:
EUP45T-1WMC-0 is a constant current mode output LED driver. The output current can be easily set via the DIP dial switch. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.) to achieve a smooth dimming effect.
Product Features
1. Multi-current driver selected by Dip-switch
2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.
3. Dimming range from 40VAC to 240C
4. Dimming effect smooth, no flicker
5. High efficiency up to 87%
6. Output short circuit protection; over current protection
7. Suitable for indoor LED lighting application, down light, panel light, and so on
Technical Parameter
| Model | EUP45T-1WMC-0 | ||
| Input | Efficiency | 87%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ＞0.5@230VAC, Full load | ||
| Current | 0.4Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | 20A@230VAC | ||
| Output | Current/Voltage/Power | 500mA/33-65VDC/32.5W 700mA/33-65VDC/45.5W 900mA/33-50VDC/45W 1050mA/33-42VDC/44.1W |
|
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| No Load Output Voltage | 84V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Ripple Current | <3% | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Short Circuit | Hiccups, recovers automatically after fault condition removed | |
| Over Current | Hiccups, recovers automatically after fault condition removed | ||
| Others | Working Temp. | -20℃~40℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 225g±5%/PCS; 50PCS/Carton; 11.75kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
