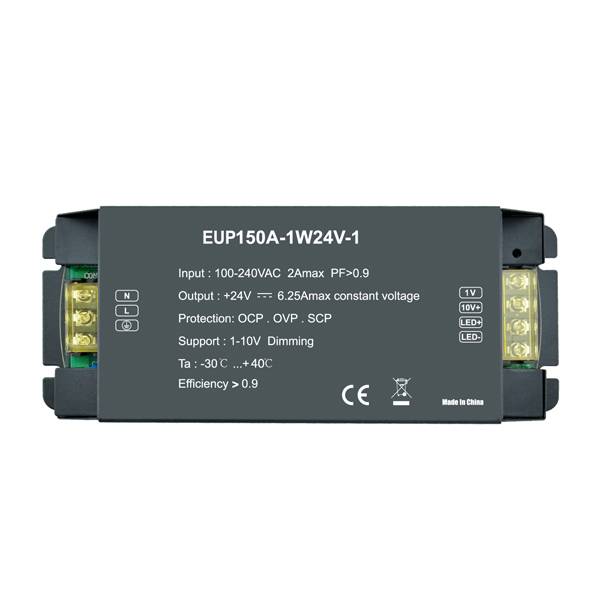

EUCHIPS 150W 24VDC 6.25A*1ch 1-10V EUP150A-1W24V-1 LED Constant Voltage Dimmable Driver X10pcs
EUCHIPS 150W 24VDC 6.25A*1ch 1-10V EUP150A-1W24V-1 LED Constant Voltage Dimmable Driver X10pcs
SKU SKU:A.103200032101
EUP150A-1W24V-1 103200032101 EN SPEC 3.04.002170.pdf
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
Technical Details:
Lead time 2-3 weeks.
Product upgrade with new A.103200032101
EUP150A-1W24V-1
150W 24VDC 1-10V LED Constant Voltage Dimmable Driver EUP150A-1W24V-1
EUP150A-1W24V-1 is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect.
Feature
1. Signal channel constant voltage, 24VDC output
2. Support passive 0/1-10V analog dimming signal
3. Dimming range from 0-100%, LED start at 1% possible
4. Wide range voltage Input 100-240VAC
5. High efficiency: up to 90%
6. High PF:>0.95(115VAC)
7. Dimming effect smooth, no flicker
8. Output short circuit protection , over power protection, over current protection
Technical Parameter
| Model | EUP150A-1W24V-1 | |
| Input | Efficiency | 90%@230VAC,Full load |
| Voltage | 100VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.9@230VAC,Full load | |
| AC Current(max) | 2Amax@100VAC | |
| Inrush Current(max) | 30A@230VAC | |
| Output | Current / Voltage / Power | 6.25A/24VDC/150W |
| R & N (Max) | 200mVp-p | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | Hiccup mode, recovers after fault condition is removed |
| Over Load | Hiccup mode, recovers after fault condition is removed | |
| Over voltage | Close output, recovers automatically after fault removed | |
| Others | Working Temp. | -30℃~40℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | /℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:/℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 662.5g±5%/PCS; 20PCS/Carton;13.75kg±5%/Carton; Carton Size: 338*228*248mm(L*W*H) | |
| Dimension | 206*75*40mm（L*W*H） | |
