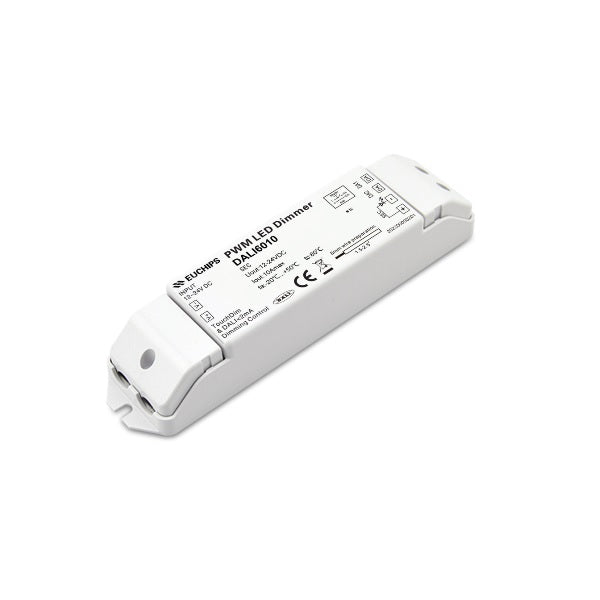

EUCHIPS 12-24VDC PWM LED Dimmer DALI6010
EUCHIPS 12-24VDC PWM LED Dimmer DALI6010
SKU:202200000201
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Technical Details:
Features
1. Single channel constant voltage output, 10A
2. Meet DALI protocol IEC 62386
3. Dimming range from 0.1~100%
4. PWM digital dimming, no alter LED color rendering index
5. Suitable for indoor LED lighting application
6. Protections: short circuit, over load, over temperature
Technical Parameter
| Model | DALI6010 | |
| Output | Voltage | 12-24VDC |
| Current | 10A | |
| Power | 120W(@12V)~240W(@24V) | |
| Channels | 1 | |
| Input | Voltage | 12-24VDC |
| Function | Dimming Mode | DALI, Touch DIM |
| Consumption Current | 2mA | |
| Protections | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Lad | Shut down the output, recovers automatically after fault removed | |
| Over Temperature | Shut down the output, recovers automatically after fault removed | |
| Others | Dimension | 168*39*30mm(L*W*H) |
| G.W. | 124g | |
| Working Temp. | -20~50℃ | |
| Relative Humidity | 20~90%RH | |
