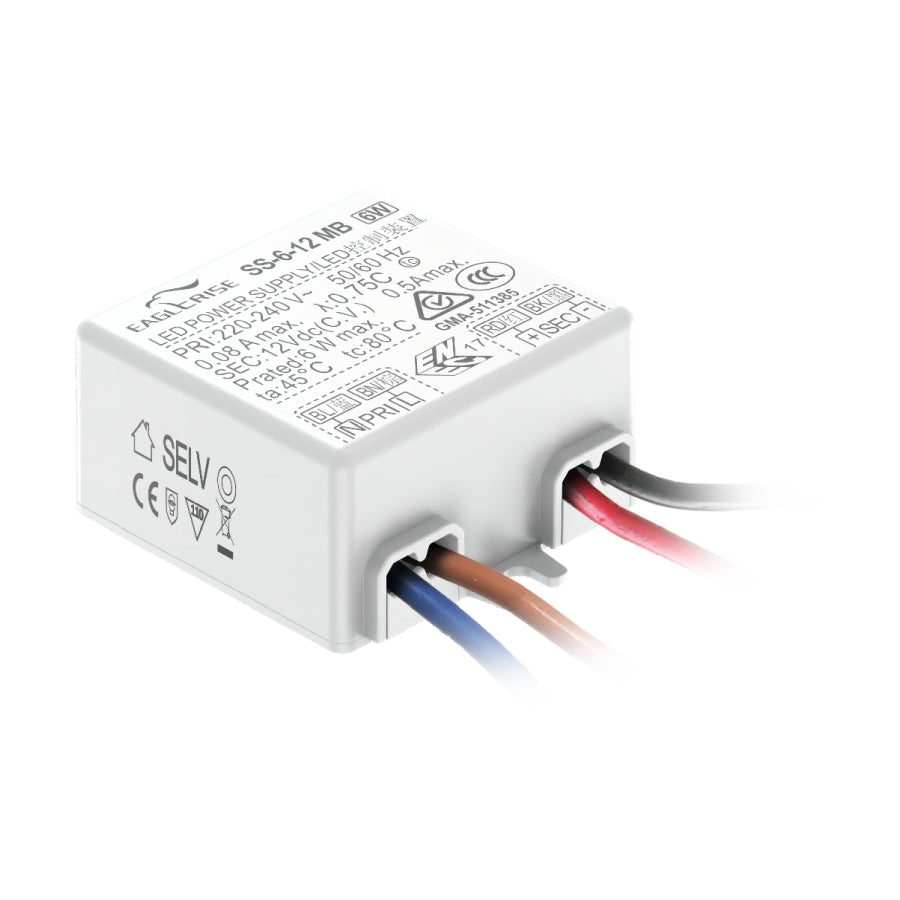

EAGLERISE AC-DC Single Output LED Constant Voltage Driver 6W/24V
EAGLERISE AC-DC Single Output LED Constant Voltage Driver 6W/24V
SKU:SS-6-XXMB6W24V
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Delivery
Delivery
Singapore
1-3 work days ( 90% of Shipments)
For items that are stocked outside Singapore, it takes 7 - 14 work days.
International
7-14 work days.
Pick FEDEX at checkout for reliable and Fast Deliveries.
Taxes
Taxes
Singapore
GST Not Applicable - Prices displayed are final prices.
International
As per importering country's Duties and taxes. To be paid to Carrier or Customs Dept. Importer is responsible for Import Duty and Taxes.
แผ่นข้อมูล
แผ่นข้อมูล
cs@delight.com.sg
Tel: +65 6429 8402
Whatsapp: +65 8900 0895
We admit ! For Technical Clarifications, our AI BOT is Quicker than us. Try it !
แบ่งปัน
Specification
Output
Constant Voltage 12VDC 24VDC
Current Range 0-0.5A 0-0.25A
Voltage Accuracy ±5%
Output HF current ripple(≥1KHz) ±5%
Output LF current ripple(≤120Hz) ≤±5%@Full Load,230VAC
Efficiency(Typ.) 75%
Input
Rated input voltage 220-240VAC
Range of input voltage 198-264VAC
Rated input voltage(DC) 198-254VDC
Frequency(Hz) 0/50/60 Hz
Power Factor 0.75C@Full Load, 230VAC
Input Current max 0.08A MAX. @Full Load,198VAC
Start-up time ＜0.5S
No Load Power ≤0.5W
THD (Typ.) <47%
Protection
Over Load Protection 105-150%
YES/Auto Resume
Over Voltage Protection ＞12.6VDC ＞25.2VDC
YES/Auto Resume
Short circuit Protection YES/Auto Resume
Over Temperature Protection YES/Auto Resume
Environment
Operating Temperature -20°C~+45°C
Humidity 20%-90%RH
Tc 80°C
80°CStorage Temperature -20°C~+60°C
Life time ＞50000h@Tc=75°C,230VAC
Surface Dimension 52X43.5X22.5(LXWXH)mm
standards EN 61347-1; EN61347-2-13; EN62384；EN55015; EN61000-3-2 ; EN61000-3-3；EN 61547;
Others ErP EU 2019/2020
RoHS RoHS (2011/65/EU) (EU)2015/863
Note
1.All parameters NOT specially mentioned are measured at 230VAC input , full load and 25°C of ambient temperature.
Ripple & Noise are measured at 20MHz of bandwidth by using a 300mm twisted pair-wire terminated with a 0.1uF & 47 uF
parallel capacitor
