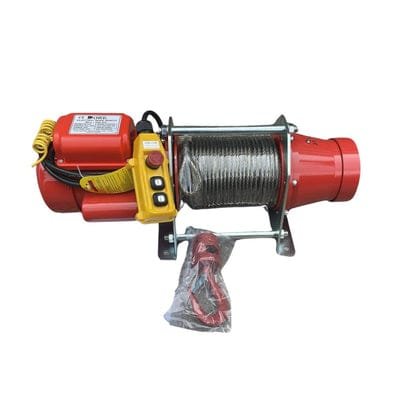

Duke Winch 230V, Electric Wire Rope Winch

• Package Box : 800 x 400 x 480 mm

Duke Winch 230V, 500Kg 8mmx60m  Electric Wire Rope Winch | Model : WIN-DU210

Features :

• Fit for various workplace applications, such as general factories, warehouse, construction, plumbing, and agriculture industries.
• Traditional table winch, high durability for both lifting and pulling applications.

• Induction motor provides high duty work and quiet running volume.

• Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanability and durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 200kg - 500kg winches are eligible to install with an upper hanger for overhung applications.
• Brake designed for both static and dynamic loading. Brake will automatically apply in the event of power loss. Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation. Planetary gearing for maximum mechanical efficiency. Easy to maintenance, simply layout of the control and with emergency stop as option. Enclosed drum flanges. Heavy duty IP54. 360℃ swivel hook as standard.
• Fit for various workplace applications, such as general factories, warehouse, construction, plumbing, and agriculture industries.

 Specifications :

• Capacity : 500 Kg
• Power : 230V
• Speed (M/Min) : 21 m/min
• Motor :
• 2 Hp
• Type : Induction
• Brake : Disc
• %ED : 40%
• IP : 51
• FEM : 2 m
• Wire Rope : 8 mm
• Wire Rope Lift : 60 m
• Winch Body : 710 x 310 x 285 mm
• Package Box : 800 x 400 x 480 mm

Duke Winch 230V Electric Wire Rope Winch 350Kg 7mm X 45m | Model : WIN-DU208

Features :

• Fit for various workplace applications, such as general factories, warehouse, construction, plumbing, and agriculture industries.
• Traditional table winch, high durability for both lifting and pulling applications.

•  Induction motor provides high duty work and quiet running volume.

•  Heavy duty high efficiency ball bearing on all running surfaces.

• Fabricated steel drum.

• Planetary gearing design guarantees a powerful loanability and durable lifetime usage.

• Enclosed drum flange to prevent rope from trapped between drum and support castings.

• 200kg - 500kg winches are eligible to install with an upper hanger for overhung applications.

Specifications :

• Capacity  : 350 kg
• Voltage : 230V
• Speed : 15 m/min
• Motor :
• Capacity : 1.5 hp
• Type : Induction
• Wire Rope  : 7 mm
• Wire Rope Lift  : 45 m
• Brake Disc
• %ED : 40%
• IP : 51
• FEM : 2m
• Net Weight : 42 kgs
• Gross Weight : 43 kgs
• Winch body : 585 x 201 x 233 mm
• Package Box : 640 x 250 x 310 mm
