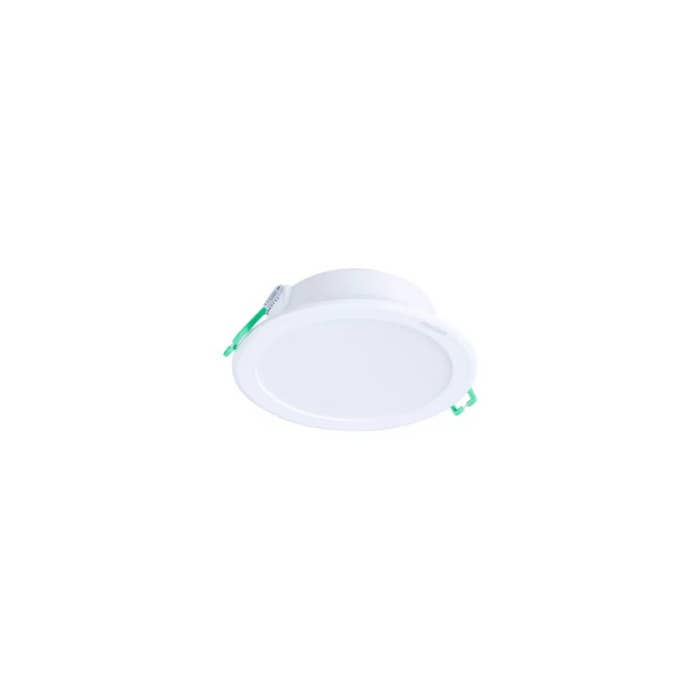

Philips SmartBright Pro Downlight gen2 DN068B G2 LED6/830 PSU D100 (New Product Launch Sale) x 120pcs
Philips SmartBright Pro Downlight gen2 DN068B G2 LED6/830 PSU D100 (New Product Launch Sale) x 120pcs
SKU SKU:911401861587
ราคาปกติ
$ 780.00 SGD
ราคาปกติ
$ 780.00 SGD
ราคาโปรโมชัน
$ 780.00 SGD
ราคาต่อหน่วย
/
ต่อ
ค่าจัดส่งที่คำนวณในขั้นตอนการชำระเงิน
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
แบ่งปัน
SmartBright Pro Downlight gen2, 5.5 W, 570 lm, 3000 K, Beam angle 110°, Textured, IP20(IP44 front)
DN068B G2 LED6/830 PSU D100 (911401861587) (New Product Launch Sale)
Leadtime: 12 To 14 Weeks
| GENERAL INFORMATION | |
| Number Of Gear Units | 1 unit |
| Gear | EB [Electronic] |
| Driver Included | Yes |
| Light Source Engine Type | LED |
| Warranty Period | 3 years |
| LIGHT TECHNICAL | |
| Luminous Flux | 570 lm |
| Correlated Color Temperature (Nom) | 3000 K |
| Luminous Efficacy (rated) (Nom) | 105 lm/W |
| Color Rendering Index (CRI) | 80 |
| Number Of Light Sources | 1 |
| Beam Angle Of Light Source | 110 degree(s) |
| Light Source Color | 830 warm white |
| Optic Type | Beam angle 110° |
| Luminaire Light Beam Spread | 110° |
| Unified Glare Rating CEN | 32 |
| OPERATING AND ELECTRICAL | |
| Input Voltage | 220 to 240 V |
| Line Frequency | 50 or 60 Hz |
| Power Consumption | 5.5 W |
| Power Factor (Fraction) | 0.9 |
| Connection | Flying leads/wires |
| Cable | 2×0.75mm² |
| Number Of Products On MCB Of 16 A Type B | - |
| Suitable For Random Switching | No |
| Protection Class IEC | Safety class II |
| CONTROLS AND DIMMING | |
| Dimmable | - |
| Control Interface | - |
| Maximum Dim Level | Not applicable |
| MECHANICAL AND HOUSING | |
| Housing Material | Polycarbonate |
| Reflector Material | - |
| Optic Material | Polycarbonate |
| Optical Cover Material | Polycarbonate |
| Housing Color | White |
| Mounting Device | Recessed mounting box round |
| Optical Cover Finish | Textured |
| Overall Height | 35 mm |
| Overall Diameter | 115 mm |
| Ingress Protection Code | IP20(IP44 front) |
| Mech. Impact Protection Code | IK03 [0.3 J] |
| Optical Cover Type | Polycarbonate micro lens optic |
| Net Weight (Piece) | 0.070 kg |
| APPROVAL AND APPLICATION | |
| Glow-wire Test | Temperature 650 °C, duration 30 s |
| Flammability Mark | For mounting on normally flammable surfaces |
| CE Mark | No |
| ENEC Mark | - |
| Photobiological Risk | Photobiological risk group 0 @ 200mm to EN62471 |
| Photobiological Risk Specification | 0.2 m |
| EU RoHS Compliant | Yes |
| Performance Ambient Temperature Tq | 25 °C |
| Ambient Temperature Range | -20 to +40 °C |
| INITIAL PERFORMANCE (IEC COMPLIANT) | |
| Luminous Flux Tolerance | +/-10% |
| Initial Chromaticity | (0.44, 0.40) SDCM≤6 |
| Power Consumption Tolerance | +/-10% |
| PRODUCT DATA | |
| Order Product Name | DN068B G2 LED6/830 PSU D100 |
| Full Product Name | DN068B G2 LED6/830 PSU D100 |
| Full Product Code | 8.7211E+14 |
| Order Code | 9.11402E+11 |
| Material Nr. (12NC) | 9.11402E+11 |
| Numerator - Quantity Per Pack | 1 |
| EAN/UPC - Product/Case | 8.7211E+12 |
| Numerator - Packs Per Outer Box | 40 |
| EAN/UPC - Case | 8.7211E+12 |
