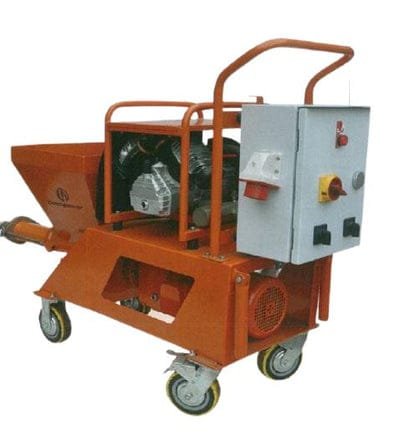

Dino-Power Grout Pump And Cement Sprayer N2 | Model : AS-DP-N2

Dino-Power Grout Pump And Cement Sprayer N2 | Model : AS-DP-N2 Features :  Control Box : The Core of the machine, to driver the motor, and air pump 4 KW motor & retarder: To drives the twister for material transportation  2.2 KW twin-piston air compressor with aluminum housing: offer enough air pressure, also the air for the atomization of spray gun 50 L material hopper : for material storage  Spinning from twister & D6 - 3 screw pump: the material will be transport to the outlet by the screw pump after the quick and even mixing by twister  33.5 cm lead screw : fix the screw pump for easy working  Mortar pipe connector; very easy to connect with the machine Cart with four wheels; with high load bearing resist pressure, solid drag link, multidirectional wheels, easy transportation Can be used epoxy pressure grouting Lamp : it will be available to work during the nights  Quick snap : easy to fix the material hopper and the cart Specifications : Voltage : 380V Motor Power : 4KW Delivery Pressure : 30Bar  Delivery Height : 10M Delivery Distance : 1-50M Nozzle Size : 10,12,14MM Capacity : 50L (13.21GPM) Net Weight : 212Kg /466.4lbs Gross Weight : 238Kg / 523.6lbs This model is a small size dry mixed mortar transfer pump, which is suitable for materials less than 3 mm
