DELTA INVERTER MS SERIES FOR 22KW 380-480V/3PH 50/60HZ

NO STOCK. INDENT LEAD TIME WILL BE 2-3 MONTHS UPON PO RECEIPT

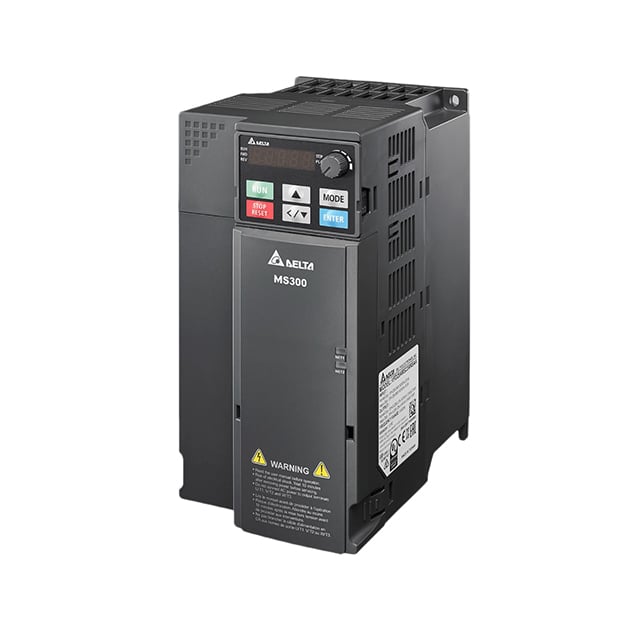

Delta electronics MS300 Series 22 kW AC Drive / Inverter is a compact, high-performance variable frequency drive designed for controlling three-phase AC motors in industrial automation applications. The 22-kW model is rated for 3-phase 380–480 VAC, 50/60 Hz input and is suitable for motors up to 22 kW (30 HP) under normal-duty operation.

The MS300 provides sensorless vector control for induction (IM) and permanent-magnet (PM) motors, along with V/F control, enabling precise speed and torque control across a wide range of applications. It also incorporates Safe Torque Off (STO) and built-in PLC functionality for simple machine-control tasks.

Key Specifications

• Brand: Delta Electronics
• Series: MS300 / MS Series
• Model: VFD45AMS43… — 22 kW class
• Motor Capacity: 22 kW / 30 HP
• Input: 3-phase, 380–480 VAC
• Input Frequency: 50/60 Hz
• Operating Voltage Range: approximately 323–528 VAC
• Normal-Duty Rated Output Current: 49 A
• Heavy-Duty Rated Output Current: 45 A
• Output Frequency: up to 500 Hz, depending on configuration
• Control: V/F, sensorless vector control for IM/PM motors
• Carrier Frequency: 2–15 kHz
• Cooling: Fan cooled
• Safety: Built-in Safe Torque Off (STO)
• Applications: Pumps, fans, compressors, conveyors, machine tools, packaging, textile and woodworking machinery.
